A-Frame Tent
The A-frame tent structure is a popular choice for those seeking a robust and adaptable temporary shelter. Its unique A-frame design provides excellent stability and a wide, clear span interior. Constructed using high-quality materials such as aluminum, these structures are resistant to harsh weather conditions. With various customization options, including size, color, and accessories, A-frame tents can be tailored to meet specific needs.
Materials: High-strength aluminum alloy frames, PVC fabric.

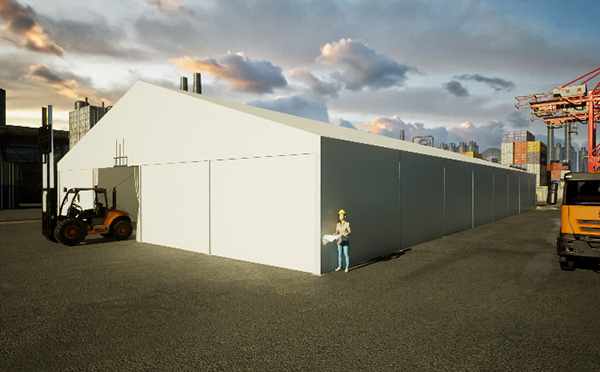

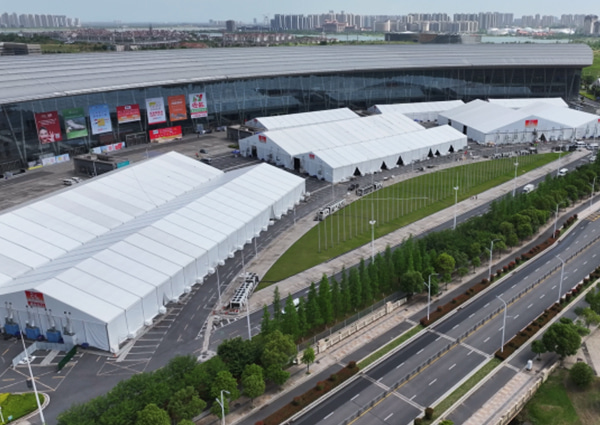

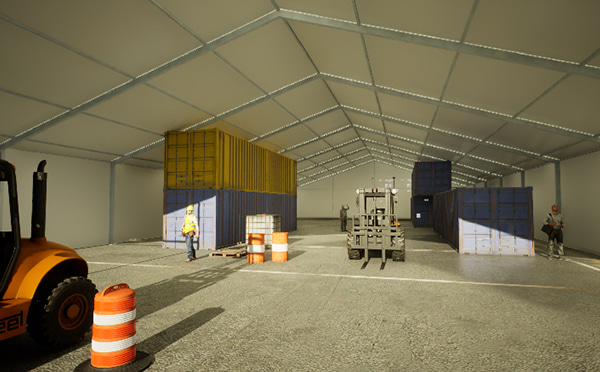

Uses: Events (weddings, festivals, corporate events), warehousing, construction sites, temporary shelters, and more.
Span Width：30m | 40m | 50m
Model | Span (m) | Bay Distance (m) | Eave Height(m) | Top Height (m) | Roof Slope | Main Profile (mm) | Spec Download |
LTRX-10/400KA | 10 | 5 | 4 | 5.6 | 18° | 203x112x4mm | |
LTRX-12/400KA | 12 | 5 | 4 | 5.9 | 18° | 203x112x4mm | |
LTRX-15/400KA | 15 | 5 | 4 | 6.4 | 18° | 203x112x4mm | |
LTRX-18/400KA | 18 | 5 | 4 | 6.9 | 18° | 203x112x4mm | |
LTRX-20/400KA | 20 | 5 | 4 | 7.2 | 18° | 203x112x4mm | |
LTRX-25/400KA | 25 | 5 | 4 | 8.1 | 18° | 203x112x4mm | |
LTRX-10/400J | 10m | 5m | 4m | 5.9 | 18° | 108x150x3mm | |
LTRX-12/400J | 12m | 5m | 4m | 6.3 | 18° | 108x150x3mm | |
LTRX-15/400J | 15m | 5m | 4m | 6.8 | 18° | 108x150x3mm | |
LTRX-10/500K | 10 | 5 | 5 | 6.6 | 18° | 203x112x4.5mm | |
LTRX-12/500K | 12 | 5 | 5 | 6.9 | 18° | 203x112x4.5mm | |
LTRX-15/500K | 15 | 5 | 5 | 7.4 | 18° | 203x112x4.5mm | |
LTRX-18/500K | 18 | 5 | 5 | 7.9 | 18° | 203x112x4.5mm | |
LTRX-20/500K | 20 | 5 | 5 | 8.2 | 18° | 203x112x4.5mm | |
LTRX-21/500K | 21 | 5 | 5 | 8.4 | 18° | 203x112x4.5mm | |
LTRX-25/500K | 25 | 5 | 5 | 9.1 | 18° | 203x112x4.5mm | |
LTRX-20/500L | 20 | 5 | 5 | 8.2 | 18° | 256x121x4.5mm | |
LTRX-25/500L | 25 | 5 | 5 | 9.1 | 18° | 256x121x4.5mm | |
LTRX-30/400L | 30 | 5 | 4 | 8.9 | 18° | 256x121x4.5mm | |
LTRX-30/500L | 30 | 5 | 5 | 9.9 | 18° | 256x121x4.5mm | |
LTRX-20/600L | 20 | 5 | 6 | 9.2 | 18° | 256x121x4.5mm | |
LTRX-25/600L | 25 | 5 | 6 | 10.1 | 18° | 256x121x4.5mm | |
LTRX-30/600L | 30 | 5 | 6 | 10.9 | 18° | 256x121x4.5mm | |
LTRX-30/600M | 30m | 5m | 6m | 11 | 18° | 300x120x5.5mm | |
LTRX-35/600M | 35m | 5m | 6m | 11.8 | 18° | 300x120x5.5mm | |
LTRX-40/600M | 40m | 5m | 6m | 12.6 | 18° | 300x120x5.5mm | |
LTRX-30/720M | 30m | 5m | 7.2m | 12.3 | 18° | 300x120x5.5mm | |
LTRX-35/720M | 35m | 5m | 7.2m | 13 | 18° | 300x120x5.5mm | |
LTRX-40/720M | 40m | 5m | 7.2m | 14 | 18° | 300x120x5.5mm | |
LTRX-30/600UA | 30m | 5m | 6m | 11 | 18° | 350x120x5mm | |
LTRX-35/600UA | 35m | 5m | 6m | 11.8 | 18° | 350x120x5mm | |
LTRX-40/600UA | 40m | 5m | 6m | 12.6 | 18° | 350x120x5mm | |
LTRX-50/600UA | 50m | 5m | 6m | 14.2 | 18° | 350x120x5mm | |
LTRX-30/720UA | 30m | 5m | 7.2m | 12.3 | 18° | 350x120x5mm | |
LTRX-35/720UA | 35m | 5m | 7.2m | 13 | 18° | 350x120x5mm | |
LTRX-40/720UA | 40m | 5m | 7.2m | 14 | 18° | 350x120x5mm | |
LTRX-40/600U | 40m | 5m | 6m | 12.8 | 18° | 350x120x6/11mm | |
LTRX-50/600U | 50m | 5m | 6m | 14.2 | 18° | 350x120x6/11mm | |
LTRX-3/250G | 3m | 3m | 2.5m | 3 | 20° | 48x84x3mm | |
LTRX-6/250G | 6m | 3m | 2.5m | 3.6 | 20° | 48x84x3mm | |
LTRX-8/250G | 8m | 3m | 2.5m | 3.9 | 20° | 48x84x3mm | |
LTRX-10/250G | 8m | 3m | 2.5m | 4.3 | 20° | 48x84x3mm | |
LTRX-8/300I | 8m | 3m | 3m | 4.3 | 18° | 68x122x3mm | |
LTRX-10/300I | 10m | 3m | 3m | 4.6 | 18° | 68x122x3mm | |
LTRX-12/300I | 12m | 3m | 3m | 4.9 | 18° | 68x122x3mm | |
LTRX-8/400I | 8m | 3m | 3m | 5.3 | 18° | 68x122x3mm | |
LTRX-10/400I | 10m | 3m | 3m | 5.6 | 18° | 68x122x3mm | |
| LTRX-12/400I | 12m | 3m | 3m | 5.9 | 18° | 68x122x3mm | |
| LTRX-10/250H | 10m | 2.5m | 2.5m | 4.3 | 20° | 48x100x3mm | |
| LTRX-8/250H | 8m | 2.5m | 2.5m | 3.9 | 20° | 48x100x3mm | |
| LTRX-6/250H | 6m | 3m | 2.5m | 3.6 | 20° | 48x100x3mm | |
| LTRX-8/250H | 50m | 5m | 6m | 14.1 | 18° | 400x120x6mm | |
| LTRX-8/250H | 40m | 5m | 6m | 12.5 | 18° | 400x120x6mm |
| Materials | Aluminum Alloy Frame |
| Q235 Steel Components / Stainless Steel Components | |
| Finish Treatment | Silver Positive Anodized Surface |
| Powder Coated and Painting | |
| Hot dip Galvanization for steel parts | |
| Color Options | Silver / Black/ White |
| Installation Way | Expansion bolts / Ground Stakes / Weight Plates |
| Max Wind Load | Up to 120km/h |
| Max Snow Load | Up to 0.5kn/sqm |
| Materials | High-Strength PVC Coated Fabric |
| Thickness Options | 650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent) |
| Color Options | White / Black / Grey / Customized option (to meet MOQ) |
| Light Transmittance | Opaque / Semi-Transparent / Full Transparent |
| Waterproof | Yes |
| UV Coated | Yes |
| Fire Retardent | Yes (DNI4102: B1, M2) |
| Sidewall | Soft PVC Fabric (thickness take cover materials for reference) |
| Sandwich Panel Wall | |
| ABS Panel Wall | |
| Tempered Glass Panel Wall | |
| Door | Fabric Door: Curtain-Open PVC Door, Zipper or String closure |
| Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door | |
| Sliding Door: Glass Sliding Door, Sandwich Sliding Door | |
| Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door | |
| Lining & Drapes | Lining and Drapes with various colors, with customzied waves against the request of structure. |
| Color: White as standard. | |
| Windows | Transparent PVC windows for PVC wall |
| Glass Awning Window / Glass Sliding Window for solid walls | |
| Flooring system | Simple wooden flooring system |
| Heavy Steel frame Modular fllooring system | |
| Heavy Alum. Modular Flooring System | |
| Secure Protection | Anti-collision Post with warning texture |
| Anti-collision Barriers with warning texture | |
| Others | Truss frames and stage system for events |
Get Your Custom A-Frame Tent Quote Today!
Our experts are here to help discover the perfect solution for you.
Request a Free Quote
Our team is ready to get your projects now!
FAQs of LINGTONG A-Frame Tent
What is an A frame tent called?
An A-Frame Tent is named for its triangular structure resembling the letter "A," commonly used in camping or interior design for its simplicity and stability.
Where to use a frame tent?
An A-Frame Tent is commonly used for camping (outdoor recreation), indoor space division (e.g., reading/game zones in homes), emergency shelters (disaster relief), commercial events (exhibitions, festivals), and military/industrial storage. Its triangular design ensures stability and adaptability across scenarios.
What are the advantages of a frame tent?
An A-Frame Tent offers stability (triangular design withstands strong winds), lightweight portability (aluminum/steel frames for easy transport), weather resilience (sloped roof sheds rain/snow), quick assembly (modular structure simplifies setup), and cost-effectiveness (minimal materials reduce long-term expenses). Ideal for camping or events requiring durable, adaptable shelter.
How can you tell if a tent is good quality?
A good-quality A-Frame Tent features durable materials (high-strength aluminum poles, waterproof fabrics), reinforced seams (double-stitched with waterproof tape), stable triangular design (wind-resistant), ventilation (≥100cm² mesh vents), and certifications (e.g., GB/T standards). Verify waterproof ratings (≥15kPa for fabric) and corrosion-resistant components.
What are the 4 types of tents?
The 4 common tent types include A-Frame Tent (triangular, wind-resistant), Dome Tent (rounded, all-season use), Tunnel Tent (long design, spacious), and Geodesic Tent (multi-pole, extreme weather). The A-Frame Tent excels in stability with its lightweight triangular structure.
When should you use an A frame tent?
Use an A-Frame Tent in windy/rainy conditions for stability (triangular design withstands storms), lightweight camping (easily portable), or quick setups (supports like trekking poles). Ideal for all-season resilience and durable shelter in rugged terrains or minimalist adventures.
