The M Series provides an excellent solution for medium-sized events that require more room for guests, equipment, and activities. Whether you're organizing a corporate event, medium-scale wedding, or festival, the M Series tents provide a spacious and professional environment.
    A-Frame Tent
    A-Frame Tent
    Arcum Tent
    Arcum Tent

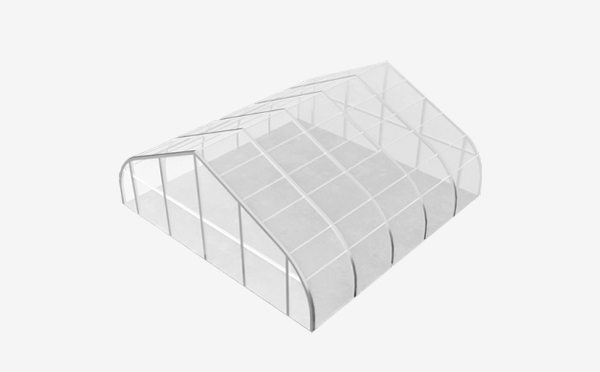

    TFS Tent
    TFS Tent
    Polygon Tent
    Polygon Tent
    Mixed Tent
    Mixed Tent

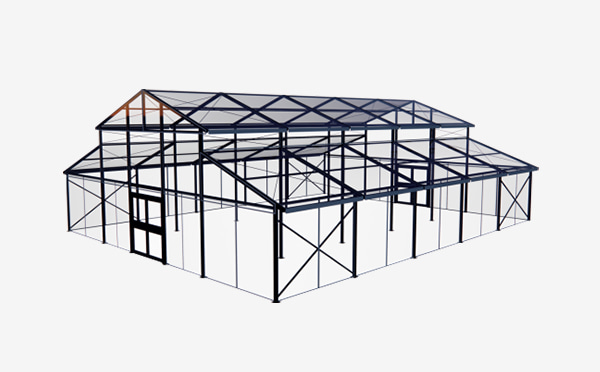

    Atrium Tent
    Atrium Tent

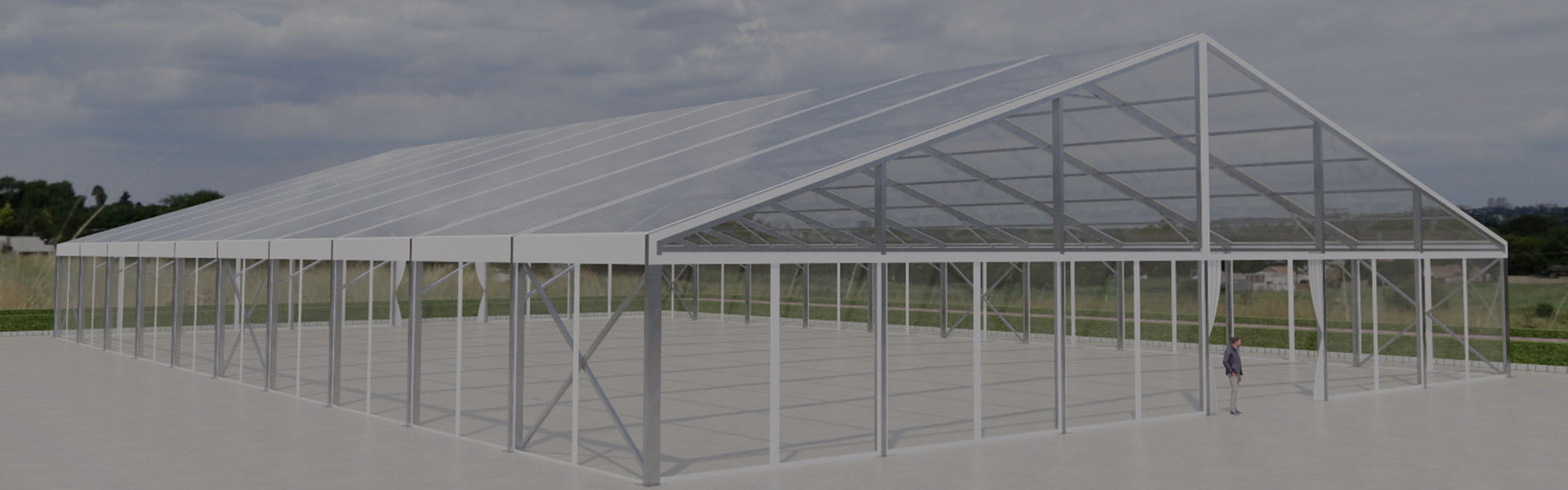

    M Series Clearspan Tent
    Sizes Available: 10m to 30m wide
    Capacity: Ideal for 100 to 500 guests

    Features:
    ● Spacious, open-clear span structure for larger setups
    ● Reinforced aluminum frame designed to withstand various weather conditions
    ● Versatile design options for sidewalls, windows, and flooring
    Best For: Corporate events, large weddings, trade shows, exhibitions, and outdoor festivals.
    Get In Touch
    Sizes Available: 10m to 30m wide Capacity: Ideal for 100 to 500 guests Features: ● Spacious, open-clear span structure for larger setups ● Reinforced aluminum frame designed to withstand various weather conditions ● Versatile design options for sidewalls, windows, and flooring Best For: Corporate events, large weddings, trade shows, exhibitions, and outdoor festivals.
    Why LINGTONG M Series Clearspan Tent?
    The frame is made of high quality aluminum frame
    Certificated with CE, ISO9001
    Available with fabric walls, doors, flooring and other accessories
    Contact Us
    The frame is made of high quality aluminum frame <span>Certificated with CE, ISO9001</span> Available with fabric walls, doors, flooring and other accessories

    Ready To Work With Us?

    Our team is ready to get your projects now!

    Contact us
    M Series Specifications

    Model

    Span (m)

    Bay Distance (m)

    Eave Height(m)

    Top Height (m)

    Roof Slope

    Main Profile (mm)

    LTRX-10/400KA

    10

    5

    4

    5.6

    18°

    203x112x4mm

    LTRX-15/400KA

    15

    5

    4

    6.4

    18°

    203x112x4mm

    LTRX-18/400KA

    18

    5

    4

    6.9

    18°

    203x112x4mm

    LTRX-20/400KA

    20

    5

    4

    7.2

    18°

    203x112x4mm

    LTRX-25/400KA

    25

    5

    4

    8.1

    18°

    203x112x4mm

    LTRX-10/400J

    10

    5

    4

    5.9

    18°

    108x150x3mm

    LTRX-15/400J

    15

    5

    4

    6.8

    18°

    108x150x3mm

    LTRX-10/500K

    10

    5

    5

    6.6

    18°

    203x112x4.5mm

    LTRX-15/500K

    15

    5

    5

    7.4

    18°

    203x112x4.5mm

    LTRX-18/500K

    18

    5

    5

    7.9

    18°

    203x112x4.5mm

    LTRX-20/500K

    20

    5

    5

    8.2

    18°

    203x112x4.5mm

    LTRX-21/500K

    21

    5

    5

    8.4

    18°

    203x112x4.5mm

    LTRX-25/500K

    25

    5

    5

    9.1

    18°

    203x112x4.5mm

    LTRX-20/500L

    20

    5

    5

    8.2

    18°

    256x121x4.5mm

    LTRX-25/500L

    25

    5

    5

    9.1

    18°

    256x121x4.5mm

    LTRX-30/400L

    30

    5

    4

    8.9

    18°

    256x121x4.5mm

    LTRX-30/500L

    30

    5

    5

    9.9

    18°

    256x121x4.5mm

    LTRX-20/600L

    20

    5

    6

    9.2

    18°

    256x121x4.5mm

    LTRX-25/600L

    25

    5

    6

    10.1

    18°

    256x121x4.5mm

    LTRX-30/600L

    30

    5

    6

    10.9

    18°

    256x121x4.5mm

    LTRX-30/600M

    30

    5

    6

    11

    18°

    300x120x5.5mm

    LTRX-30/720M

    30

    5

    7.2

    12.3

    18°

    300x120x5.5mm

    LTRX-30/600MA

    30

    5

    6

    11

    18°

    350x120x5mm

    LTRX-30/720MA

    30

    5

    7.2

    12.3

    18°

    350x120x5mm

    LTRX-10/300H

    10

    3

    3

    4.8

    20°

    48x100x3mm

    LTRX-10/300I

    10

    3

    3

    4.6

    18°

    68x122x3mm

    LTRX-10/400I

    10

    3

    3

    5.6

    18°

    68x122x3mm

    LTGX-15/400K

    15

    5

    4

    8.2

    40°

    203x112x4.5mm

    LTGX-20/400K

    20

    5

    4

    9.5

    40°

    203x112x4.5mm

    LTGX-25/400K

    25

    5

    4

    10.8

    40°

    203x112x4.5mm

    LTGX-15/500K

    15

    5

    5

    9.2

    40°

    203x112x4.5mm

    LTGX-20/500K

    20

    5

    5

    10.5

    40°

    203x112x4.5mm

    LTGX-25/500K

    25

    5

    5

    11.8

    40°

    203x112x4.5mm

    LTGX-20/500L

    20

    5

    5

    10.5

    40°

    256x121x4.5mm

    LTGX-25/500L

    25

    5

    5

    11.8

    40°

    256x121x4.5mm

    LTGX-30/500L

    30

    5

    5

    13.2

    40°

    256x121x4.5mm

    LTGX-20/600L

    20

    5

    6

    11.5

    40°

    256x121x4.5mm

    LTGX-25/600L

    25

    5

    6

    12.8

    40°

    256x121x4.5mm

    LTGX-30/600M

    30

    5

    6

    14.2

    40°

    300x120x5.5mm

    LTTX-15/400K

    15

    5

    4

    7.6

    25°

    203x112x4.5mm

    LTTX-20/400K

    20

    5

    4

    8.7

    25°

    203x112x4.5mm

    LTTX-25/400K

    25

    5

    4

    9.9

    25°

    203x112x4.5mm

    LTTX-15/500K

    15

    5

    5

    8.6

    25°

    203x112x4.5mm

    LTTX-20/500K

    20

    5

    5

    9.7

    25°

    203x112x4.5mm

    LTTX-25/500K

    25

    5

    5

    10.9

    25°

    203x112x4.5mm

    LTTX-20/500L

    20

    5

    5

    9.7

    25°

    256x121x4.5mm

    LTTX-25/500L

    25

    5

    5

    10.9

    25°

    256x121x4.5mm

    LTTX-30/500L

    30

    5

    5

    12

    25°

    256x121x4.5mm

    LTTX-20/600L

    20

    5

    6

    10.7

    25°

    256x121x4.5mm

    LTTX-25/600L

    25

    5

    6

    11.9

    25°

    256x121x4.5mm

    LTTX-30/600L

    30

    5

    6

    13

    25°

    256x121x4.5mm

    LTHX-10/400J

    10

    5

    4

    5.5

    20°

    108x150x3mm

    LTHX-15/400J

    15

    5

    4

    6.5

    20°

    108x150x3mm

    LTHX-10/500K

    10

    5

    5

    5.5

    20°

    203x112x4.5mm

    LTHX-15/500K

    15

    5

    5

    6.5

    20°

    203x112x4.5mm

    LTHX-20/500K

    20

    5

    5

    7.5

    20°

    203x112x4.5mm

    LTHX-25/500K

    25

    5

    5

    8.5

    20°

    203x112x4.5mm

    LTRX-20/500L

    20

    5

    5

    8.2

    20°

    256x121x4.5mm

    LTRX-25/500L

    25

    5

    5

    9.1

    20°

    256x121x4.5mm

    LTRX-30/500L

    30

    5

    5

    9.9

    20°

    256x121x4.5mm

    LTRX-20/600L

    20

    5

    6

    9.2

    20°

    256x121x4.5mm

    LTRX-25/600L

    25

    5

    6

    10.1

    20°

    256x121x4.5mm

    LTRX-30/600L

    30

    5

    6

    10.9

    20°

    256x121x4.5mm

    LTHX-30/600M

    30

    5

    6

    10.6

    20°

    300x120x5.5mm

    LTPD-15/400K

    15

    5

    4

    5.1

    8°

    203x112x4.5mm

    LTPD-20/400K

    20

    5

    4

    5.4

    8°

    203x112x4.5mm

    LTPD-25/400K

    25

    5

    4

    5.8

    8°

    203x112x4.5mm

    LTPD-15/500K

    15

    5

    5

    6.1

    8°

    203x112x4.5mm

    LTPD-20/500K

    20

    5

    5

    6.4

    8°

    203x112x4.5mm

    LTPD-25/500K

    25

    5

    5

    6.8

    8°

    203x112x4.5mm

    LTDF-10/400M

    10

    5

    6.8

    8.4

    18°

    300x120x5.5mm

    LTDF-15/400M

    15

    5

    6.8

    9.2

    18°

    300x120x5.5mm

    LTDF-20/400M

    20

    5

    6.8

    9.7

    18°

    300x120x5.5mm

    MaterialsAluminum Alloy Frame
    Q235 Steel Components / Stainless Steel Components
    Finish TreatmentSilver Positive Anodized Surface
    Powder Coated and Paiting
    Hot dip Galvanization for steel parts
    Color OptionsSilver / Black/ White
    Installation WayExpansion bolts / Ground Stakes / Weight Plates
    Max Wind LoadUp to 120km/h
    Max Snow LoadUp to 0.5kn/sqm

    MaterialsHigh-Strength PVC Coated Fabric
    Thickness Options650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent)
    Color OptionsWhite / Black / Grey / Customized option (to meet MOQ)
    Light TransmittanceOpaque / Semi-Transparent / Full Transparent
    WaterproofYes
    UV CoatedYes
    Fire RetardentYes (DNI4102: B1, M2)

    SidewallSoft PVC Fabric (thickness take cover materials for reference)
    Sandwich Panel Wall
    ABS Panel Wall
    Tempered Glass Panel Wall
    DoorFabric Door: Curtain-Open PVC Door, Zipper or String closure
    Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door
    Sliding Door: Glass Sliding Door, Sandwich Sliding Door
    Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door
    Lining & DrapesLining and Drapes with various colors, with customzied waves against the request of structure.
    Color: White as standard.
    WindowsTransparent PVC windows for PVC wall
    Glass Awning Window / Glass Sliding Window for solid walls
    Flooring systemSimple wooden flooring system
    Heavy Steel frame Modular fllooring system
    Heavy Alum. Modular Flooring System
    Secure ProtectionAnti-collision Post with warning texture
    Anti-collision Barriers with warning texture
    OthersTruss frames and stage system for events

    i

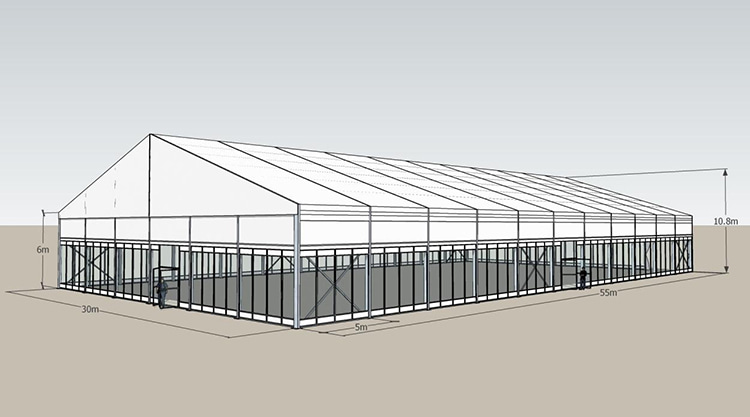

    Technical Sketch
