Modular
Waterproof
UV-resistant
Wind-resistant
Quick to build
Reusable

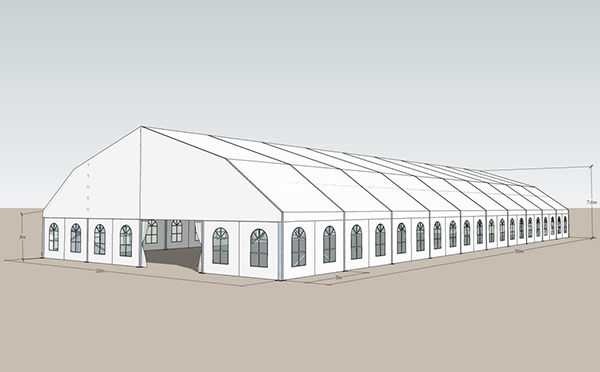

Polygon Tent
A Polygon Tent Structure is a type of tent that features a geometric, multi-sided design, offering enhanced stability and a unique aesthetic appeal. The polygonal shape provides greater resistance to wind and environmental stresses compared to traditional round or square tents.
Materials: High-strength aluminum alloy frames, PVC fabric.
Uses: Temporary shelters for outdoor events, such as festivals and exhibitions
Emergency disaster relief tents
Sports or recreational event structures
Commercial or retail spaces in outdoor settings
Span Width：15-30m
| Model | Span (m) | Bay Distance (m) | Eave Height (m) | Top Height (m) | Roof Pitch | Main Profile (mm) | Spec Download |
| LTGX-15/400K | 15 | 5 | 4 | 8.2 | 40° | 203×112×4.5mm | |
| LTGX-20/400K | 20 | 5 | 4 | 9.5 | 40° | 203×112×4.5mm | |
| LTGX-25/400K | 25 | 5 | 4 | 10.8 | 40° | 203×112×4.5mm | |
| LTGX-15/500K | 15 | 5 | 5 | 9.2 | 40° | 203×112×4.5mm | |
| LTGX-20/500K | 20 | 5 | 5 | 10.5 | 40° | 203×112×4.5mm | |
| LTGX-25/500K | 25 | 5 | 5 | 11.8 | 40° | 203×112×4.5mm | |
| LTGX-20/500L | 20 | 5 | 5 | 10.5 | 40° | 256×121×4.5mm | |
| LTGX-25/500L | 25 | 5 | 5 | 11.8 | 40° | 256×121×4.5mm | |
| LTGX-30/500L | 30 | 5 | 5 | 13.2 | 40° | 256×121×4.5mm | |
| LTGX-20/600L | 20 | 5 | 6 | 11.5 | 40° | 256×121×4.5mm | |
| LTGX-25/600L | 25 | 5 | 6 | 12.8 | 40° | 256×121×4.5mm | |
| LTGX-30/600M | 30 | 5 | 6 | 14.2 | 40° | 300×120×5.5mm | |
| LTGX-35/600M | 35 | 5 | 6 | 15.5 | 40° | 300×120×5.5mm | |
| LTGX-40/600M | 40 | 5 | 6 | 16.9 | 40° | 300×120×5.5mm |
| Materials | Aluminum Alloy Frame |
| Q235 Steel Components / Stainless Steel Components | |
| Finish Treatment | Silver Positive Anodized Surface |
| Powder Coated and Painting | |
| Hot dip Galvanization for steel parts | |
| Color Options | Silver / Black/ White |
| Installation Way | Expansion bolts / Ground Stakes / Weight Plates |
| Max Wind Load | Up to 120km/h |
| Max Snow Load | Up to 0.5kn/sqm |
| Materials | High-Strength PVC Coated Fabric |
| Thickness Options | 650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent) |
| Color Options | White / Black / Grey / Customized option (to meet MOQ) |
| Light Transmittance | Opaque / Semi-Transparent / Full Transparent |
| Waterproof | Yes |
| UV Coated | Yes |
| Fire Retardent | Yes (DNI4102: B1, M2) |
| Sidewall | Soft PVC Fabric (thickness take cover materials for reference) |
| Sandwich Panel Wall | |
| ABS Panel Wall | |
| Tempered Glass Panel Wall | |
| Door | Fabric Door: Curtain-Open PVC Door, Zipper or String closure |
| Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door | |
| Sliding Door: Glass Sliding Door, Sandwich Sliding Door | |
| Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door | |
| Lining & Drapes | Lining and Drapes with various colors, with customzied waves against the request of structure. |
| Color: White as standard. | |
| Windows | Transparent PVC windows for PVC wall |
| Glass Awning Window / Glass Sliding Window for solid walls | |
| Flooring system | Simple wooden flooring system |
| Heavy Steel frame Modular fllooring system | |
| Heavy Alum. Modular Flooring System | |
| Secure Protection | Anti-collision Post with warning texture |
| Anti-collision Barriers with warning texture | |
| Others | Truss frames and stage system for events |
Get Your Custom Polygon Tent Quote Today!
Our experts are here to help discover the perfect solution for you.
Request a Free Quote
Our team is ready to get your projects now!
FAQs of LINGTONG Polygon Tent
What exactly is a Polygon Tent?
A Polygon Tent features a unique geometric design, typically with multiple sides (like a hexagon, octagon, or other polygonal shapes) that provide a modern, striking appearance. These tents are designed for both outdoor and indoor use, offering a spacious and stylish environment for events, exhibitions, or brand activations.
Can the Polygon Tent withstand different weather conditions?
Yes, Polygon Tents are designed to be weather-resistant. The materials are waterproof, UV-resistant, and capable of withstanding wind speeds of up to 120km/h.
Can the Polygon Tent be branded with my company’s logo?
Absolutely! The fabric panels of the Polygon Tent can be fully customized with your logo, graphics, or messaging. This is ideal for brand activations, marketing events, and exhibitions, where visibility is key. You can also customize the color and design of the tent to match your brand identity.
Can I use a Polygon Tent indoors?
Yes, the Polygon Tent works well for both indoor and outdoor events. Its unique shape and customizable design make it an attractive option for trade shows, corporate events, and exhibitions in indoor spaces.
What are the materials used in the construction of the Polygon Tent?
The Polygon Tent is made from a durable, UV-resistant polyester fabric with a PVC coating for waterproofing. The frame is typically constructed from lightweight aluminum or steel, which provides strength and stability while keeping the tent easy to transport.
Can I buy a Polygon Tent for my events?
Yes. LINGTONG Structure is professional clearspan tent manufacturer for festivals, corporate events, or exhibitions. You can choose us if you're only looking for a temporary or permanent solution. Please contact our sales team for professional advice.
