Modular
Waterproof
UV-resistant
Wind-resistant
Quick to build
Reusable

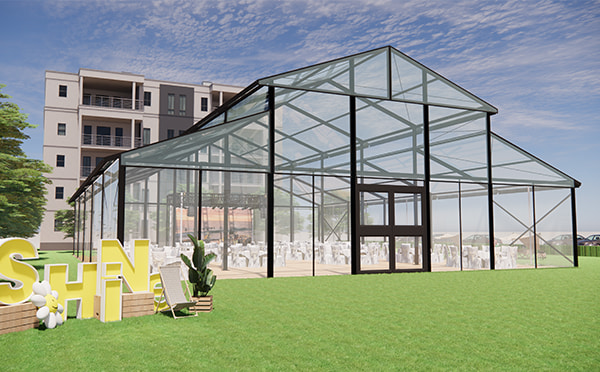

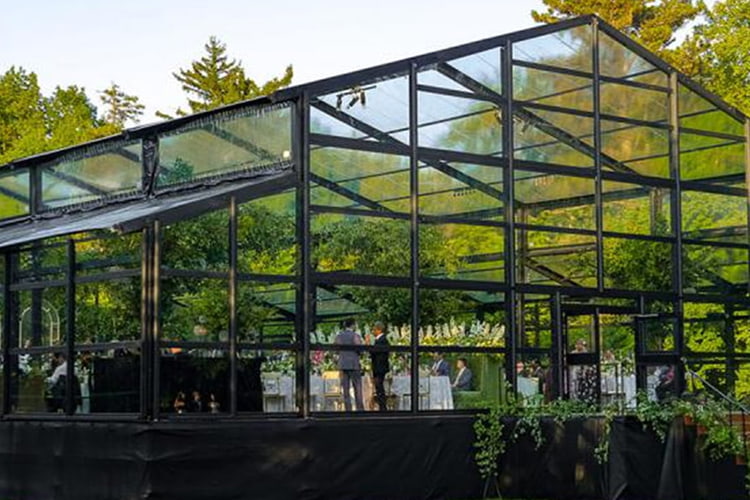

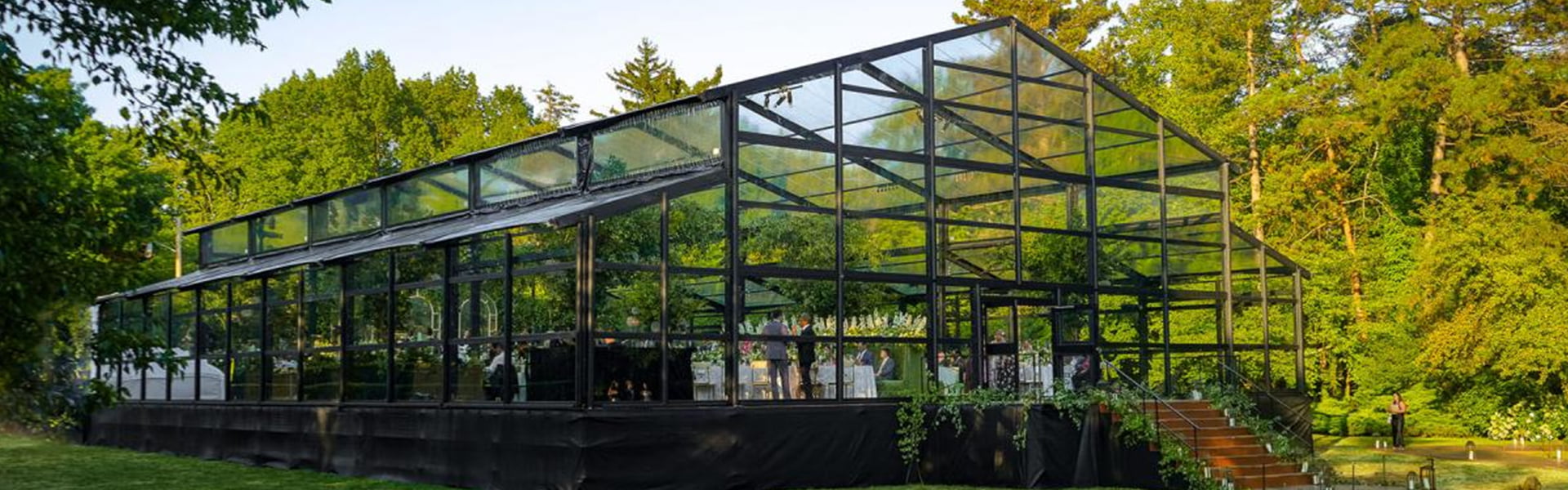

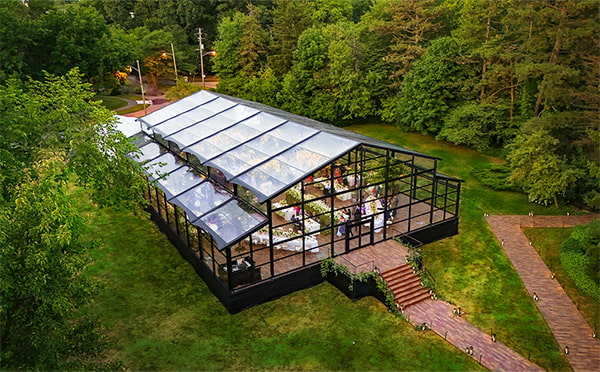

Atrium Tent
The Atrium Tent is a versatile and elegant tent structure known for its open and airy design, featuring high ceilings and ample natural light. Primarily used in outdoor wedding venues, corporate events, and exhibition spaces, it creates a sophisticated and inviting atmosphere. Ideal for discerning clients who value both aesthetics and functionality, the Atrium Tent provides a luxurious and memorable experience for any occasion.
Size Options: From small 8m x 8m to large 30m x 30m, flexibly customizable for various event scales.
Material: High-strength aluminum alloy frame for strong wind resistance, UV-blocking, waterproof, and fire-retardant PVC membrane.
Load Capacity:Max load of 10 tons, suitable for supporting various heavy equipment.
Venue Suitability:Suitable for beaches, grasslands, city squares, outdoor activity areas, etc., with flexible tent positioning.

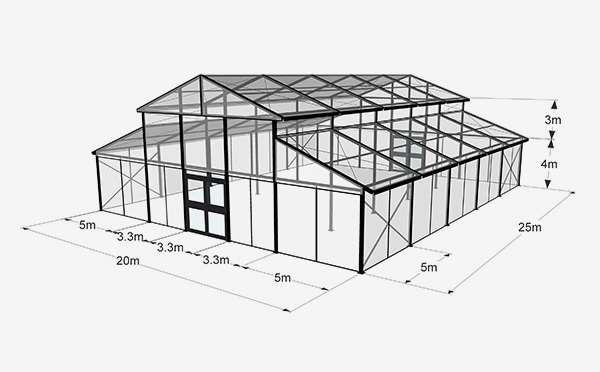

Model | Span (m) | Bay Distance (m) | Eave Height(m) | Top Height (m) | Spec Download |
LTTR-15/400K | 5.00+5.00+5.00m | 5 | 4 | 7.9 | |
LTTR-20/400K | 5.00+10.00+5.00m | 5 | 4 | 8.8 |
| Materials | Aluminum Alloy Frame |
| Q235 Steel Components / Stainless Steel Components | |
| Finish Treatment | Silver Positive Anodized Surface |
| Powder Coated and Painting | |
| Hot dip Galvanization for steel parts | |
| Color Options | Silver / Black/ White |
| Installation Way | Expansion bolts / Ground Stakes / Weight Plates |
| Max Wind Load | Up to 120km/h |
| Max Snow Load | Up to 0.5kn/sqm |
| Materials | High-Strength PVC Coated Fabric |
| Thickness Options | 650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent) |
| Color Options | White / Black / Grey / Customized option (to meet MOQ) |
| Light Transmittance | Opaque / Semi-Transparent / Full Transparent |
| Waterproof | Yes |
| UV Coated | Yes |
| Fire Retardent | Yes (DNI4102: B1, M2) |
| Sidewall | Soft PVC Fabric (thickness take cover materials for reference) |
| Sandwich Panel Wall | |
| ABS Panel Wall | |
| Tempered Glass Panel Wall | |
| Door | Fabric Door: Curtain-Open PVC Door, Zipper or String closure |
| Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door | |
| Sliding Door: Glass Sliding Door, Sandwich Sliding Door | |
| Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door | |
| Lining & Drapes | Lining and Drapes with various colors, with customzied waves against the request of structure. |
| Color: White as standard. | |
| Windows | Transparent PVC windows for PVC wall |
| Glass Awning Window / Glass Sliding Window for solid walls | |
| Flooring system | Simple wooden flooring system |
| Heavy Steel frame Modular fllooring system | |
| Heavy Alum. Modular Flooring System | |
| Secure Protection | Anti-collision Post with warning texture |
| Anti-collision Barriers with warning texture | |
| Others | Truss frames and stage system for events |
Get Your Custom Atrium Tent Quote Today!
Our experts are here to help discover the perfect solution for you.
Request a Free Quote
Our team is ready to get your projects now!
FAQs of LINGTONG Atrium Tent
Is the Atrium Tent suitable for different weather conditions?
Absolutely. Crafted with high-quality, weather-resistant materials, the Atrium Tent can effortlessly withstand intense sunlight, showers, and other weather elements, ensuring your event runs smoothly.
Is Atrium Tent setup complicated?
At LINGTONG Structures, our tents feature a modular design that makes them easy to set up and dismantle, significantly reducing time and labor costs. Perfect for weddings where swift tent installation is crucial - "wedding tent setup" has never been simpler.
Can I customize the tent size according to my needs?
Of course! We offer a range of tent sizes and support customized designs tailored to your event requirements, whether it's for a conference, exhibition, or any other occasion. Discover the "tent specifications suitable for expos" that meet your needs.
Are your tents certified for safety and quality?
Yes, our high-quality tents are certified with NFPA701 (USA), DIN4012(B1/M2) fire safety certification (Germany), and CE certification, ensuring they meet the highest standards in safety and quality.
