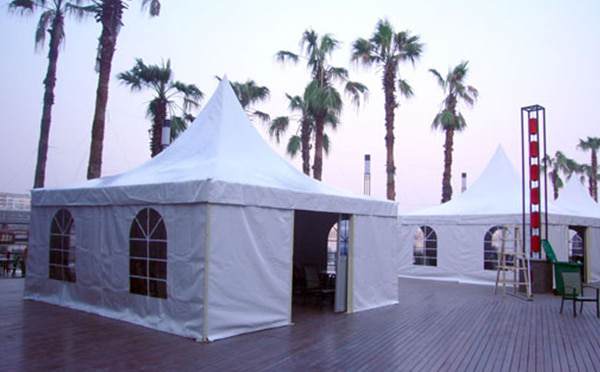

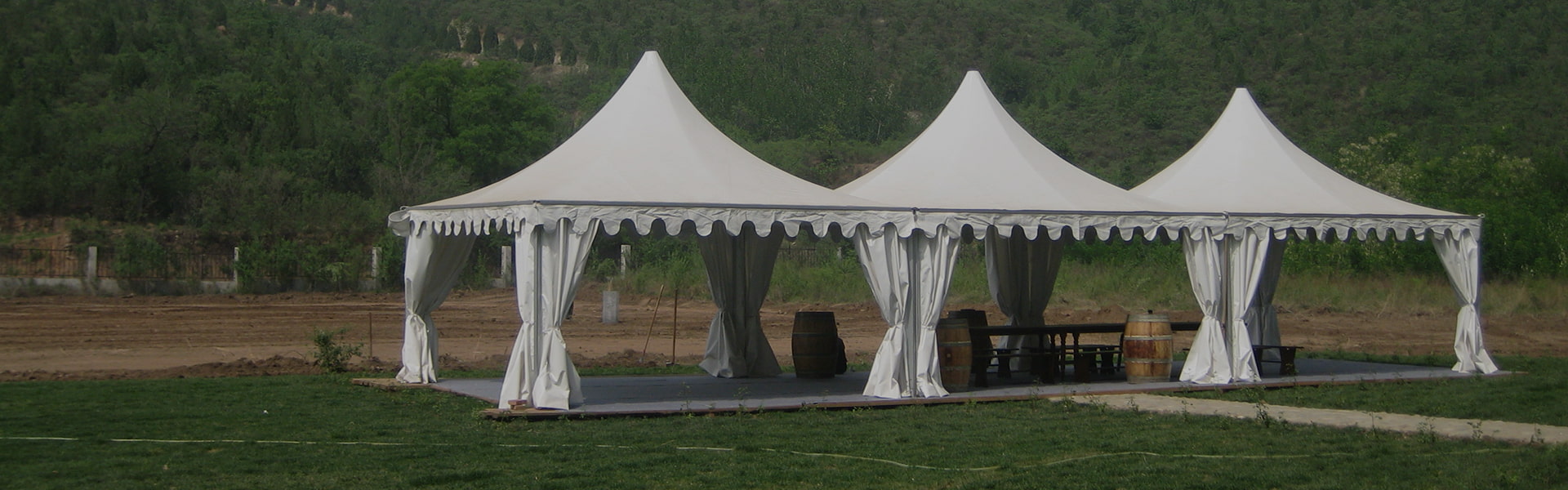

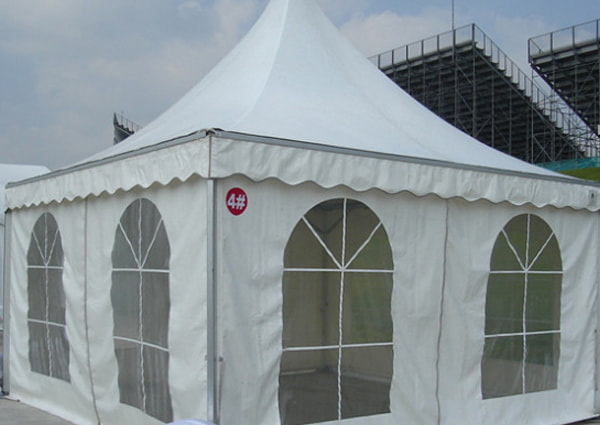

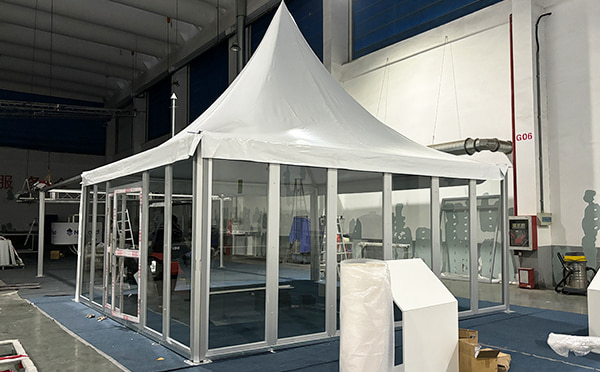

Pagoda Tent

Pagoda Tent

The Pagoda Tent is a stylish and functional tent structure characterized by its unique pagoda-like design.  Constructed with aluminum alloy square tubes, it offers robust stability and durability.  The tent's framework is lightweight yet strong, making it ideal for a wide range of events and outdoor settings.


01.pngSize Options: From small 4m x 4m to large 10m x 10m, catering to various event scales.




02.pngMaterial: High-strength aluminum alloy frame with PVC waterproof membrane, offering good light transmission and wind resistance.




03.pngLoad Capacity: Max. 6 tons, suitable for heavy exhibits or decorations.




04.pngApplication: Suitable for various terrains, especially outdoor environments like grass, sand, and urban plazas.


Pagoda Tent Specification

Model

Span (m)

Bay Distance (m)

Eave Height(m)

Main Profile (mm)

Spec Download

TLJD-3/230N

3m

3m

2.3m

65x65x3mm

TLJD-4/230N

4m

4m

2.3m

65x65x3mm

TLJD-5/230N

5m

5m

2.3m

65x65x3mm

TLJD-6/230N

6m

6m

2.3m

65x65x3mm

TLJD-6/250I

6m

6m

2.5m

68x122x3mm

TLJD-8/250I

8m

8m

2.5m

68x122x3mm

TLJD-10/250I

10m

10m

2.5m

68x122x3mm

MaterialsAluminum Alloy Frame
Q235 Steel Components / Stainless Steel Components
Finish TreatmentSilver Positive Anodized Surface
Powder Coated and Painting
Hot dip Galvanization for steel parts
Color OptionsSilver / Black/ White
Installation WayExpansion bolts / Ground Stakes / Weight Plates

MaterialsHigh-Strength PVC Coated Fabric
Thickness Options650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent)
Color OptionsWhite / Black / Grey / Customized option (to meet MOQ)
Light TransmittanceOpaque / Semi-Transparent / Full Transparent
WaterproofYes
UV CoatedYes
Fire RetardentYes (DNI4102: B1, M2)

SidewallSoft PVC Fabric (thickness take cover materials for reference)
Sandwich Panel Wall
ABS Panel Wall
Tempered Glass Panel Wall
DoorFabric Door: Curtain-Open PVC Door, Zipper or String closure
Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door
Sliding Door: Glass Sliding Door, Sandwich Sliding Door
Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door
Lining & DrapesLining and Drapes with various colors, with customzied waves against the request of structure.
Color: White as standard.
WindowsTransparent PVC windows for PVC wall
Glass Awning Window / Glass Sliding Window for solid walls
Flooring systemSimple wooden flooring system
Heavy Steel frame Modular fllooring system
Heavy Alum. Modular Flooring System
Secure ProtectionAnti-collision Post with warning texture
Anti-collision Barriers with warning texture
OthersTruss frames and stage system for events

The name can not be empty!
The email can not be empty!Email format error!
The phone can not be empty!
The message can not be empty!

Get Your Custom Pagoda Tent Quote Today!

Our experts are here to help discover the perfect solution for you.

Request a Free Quote
Applications of Pagoda Tents
Outdoor Events
Pagoda tents are ideal for weddings, parties, and corporate functions. Their elegant design and weather resistance provide shade and shelter, creating a stylish space for guests.
Exhibitions & Trade Shows
These tents are perfect for eye-catching booths at exhibitions and trade shows. Businesses can use them to showcase products and create inviting spaces for networking.
Temporary Structures
Pagoda tents serve as temporary shelters for offices, classrooms, and accommodation. Their sturdy build and waterproof features make them suitable for construction sites, disaster relief, and outdoor festivals.
Garden & Landscaping
Pagoda tents add architectural interest to outdoor spaces in public parks, botanical gardens, and private estates. They blend with the natural surroundings and provide a unique space for relaxation.
Corporate Functions
Pagoda tents offer a professional setting for award ceremonies, product launches, and company retreats. Their versatility allows them to be configured to suit different corporate event needs.
Gastronomy & Hospitality
In gastronomy and hospitality, pagoda tents create charming dining spaces. They extend outdoor seating, protect guests from the elements, and create an inviting atmosphere. They're also used for pop-up shops and food stalls.
Get in Touch with LINGTONG
LINGTONG provides sustainable solutions for warehouse tents, sports court tents, and exhibition tents.
Our team is ready to get your projects now!
The name cannot be empty!
The email cannot be empty!Email format error!
The phone cannot be empty!
The message cannot be empty!

FAQs of LINGTONG Pagoda Tent

  • What Sets Pagoda Tents Apart from Other Event Tent Types?

    Pagoda tents stand out from other event tents with their elegant and distinctive design, making them the perfect choice for formal occasions. Their superior stability and robust wind and rain protection further distinguish them from other tent options on the market.

  • Estimated Lifespan and Maintenance Tips for Pagoda Tents

    The lifespan of a pagoda tent varies based on its material quality and maintenance practices, typically ranging from 5 to 15 years. To extend its durability, it's crucial to clean the tent after each use and store it in a dry, cool location. Proper maintenance ensures long-lasting performance and optimal usage.

  • Utilizing Pagoda Tents for Temporary Structures: Is It Possible?

    Absolutely! Pagoda tents are ideal for temporary structures due to their easy assembly and disassembly processes. Their sturdy construction and ability to withstand various weather conditions make them a reliable choice for temporary setups.

  • Waterproof Features of Pagoda Tents: What to Expect?

    Pagoda tents are crafted with waterproof materials and undergo seam treatment to prevent water infiltration. This ensures that your event remains dry and comfortable, regardless of the weather conditions outside.

  • Securing Pagoda Tents on Different Ground Types: A Comprehensive Guide

    Securing pagoda tents involves using weights, pegs, and stakes, depending on the ground type. For hard surfaces like pavements, weights provide stable support, while pegs and stakes are essential for soft grounds like grass. Proper anchoring ensures the tent remains stable and secure throughout your event.
