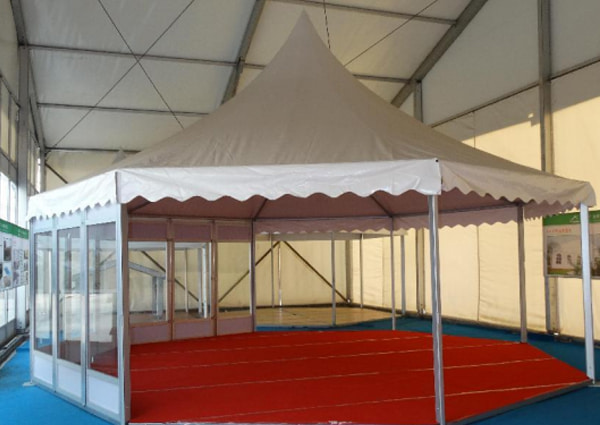

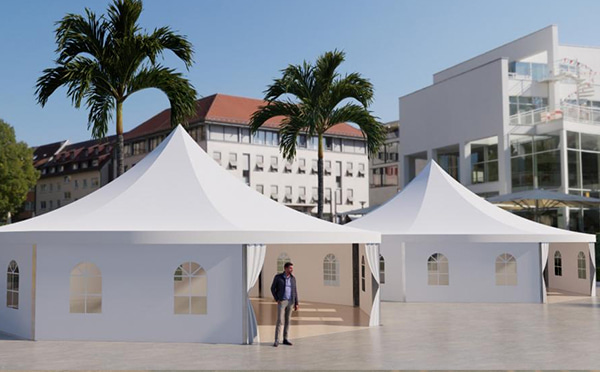

Multi-side Tent

Multi-side Tent

The Multi-side Tent is a versatile and functional structure that combines strength and flexibility. Its robust aluminum frame and weather-resistant PVC fabric make it ideal for a wide range of outdoor and indoor events, from weddings and exhibitions to emergency shelters.


Stats-1.pngMaterials: High-strength aluminum alloy frames, PVC fabric.




Stats-2.pngUses: Temporary shelters for outdoor events, such as festivals and exhibitions
Emergency disaster relief tents
Sports or recreational event structures
Commercial or retail spaces in outdoor settings




Stats-3.pngSpan Width：15-30m


Multi-side Tent Specification

ModelSpan (m)Bay Distance (m)Eave Height(m)Top Height (m)Roof SlopeMain Profile (mm)Spec Download
TLJDD-6/250H6m3m2.5m5.748x100x3mm
TLJDD-8/250H10m4m2.5m6.748x100x3mm
TLPDD-6/250H6m3m2.5m3.820°48x100x3mm
TLPDD-8/250H10m4m2.5m4.720°48x100x3mm
TLJDD-8/250I8m4m2.5m668x122x3mm
TLJDD-9/250I9m4.5m2.5m6.268x122x3mm
TLJDD-10/250I10m5m2.5m6.368x122x3mm
TLJDD-12/250I12m6m2.5m6.668x122x3mm
TLPDD-8/250I8m4m2.5m68x122x3mm
TLPDD-9/250I9m4.5m2.5m68x122x3mm
TLPDD-10/250I10m5m2.5m68x122x3mm
TLPDD-12/250I12m6m2.5m68x122x3mm
TLPDD-15/400K15m5.74m4m7.618°203x112x4.5mm
TLPDD-20/400K20m6.18m4m8.718°256x121x4.5mm
TLPDD-30/400M30m5.96m4m8.918°300x120x5.5mm

MaterialsAluminum Alloy Frame
Q235 Steel Components / Stainless Steel Components
Finish TreatmentSilver Positive Anodized Surface
Powder Coated and Painting
Hot dip Galvanization for steel parts
Color OptionsSilver / Black/ White
Installation WayExpansion bolts / Ground Stakes / Weight Plates

MaterialsHigh-Strength PVC Coated Fabric
Thickness Options650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent)
Color OptionsWhite / Black / Grey / Customized option (to meet MOQ)
Light TransmittanceOpaque / Semi-Transparent / Full Transparent
WaterproofYes
UV CoatedYes
Fire RetardentYes (DNI4102: B1, M2)

SidewallSoft PVC Fabric (thickness take cover materials for reference)
Sandwich Panel Wall
ABS Panel Wall
Tempered Glass Panel Wall
DoorFabric Door: Curtain-Open PVC Door, Zipper or String closure
Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door
Sliding Door: Glass Sliding Door, Sandwich Sliding Door
Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door
Lining & DrapesLining and Drapes with various colors, with customzied waves against the request of structure.
Color: White as standard.
WindowsTransparent PVC windows for PVC wall
Glass Awning Window / Glass Sliding Window for solid walls
Flooring systemSimple wooden flooring system
Heavy Steel frame Modular fllooring system
Heavy Alum. Modular Flooring System
Secure ProtectionAnti-collision Post with warning texture
Anti-collision Barriers with warning texture
OthersTruss frames and stage system for events

The name can not be empty!
The email can not be empty!Email format error!
The phone can not be empty!
The message can not be empty!

Get Your Custom Multi-side Tent Quote Today!

Our experts are here to help discover the perfect solution for you.

Request a Free Quote
Application Cases
Outdoor Events
Festivals, concerts, trade shows, and exhibitions
Weddings & Private Parties
Elegant and functional solutions for memorable celebrations
Corporate Events
Conferences, product launches, and team-building activities
Emergency Shelters
Quick-deployment tents for disaster relief and temporary housing
Get in Touch with LINGTONG
LINGTONG provides sustainable solutions for warehouse tents, sports court tents, and exhibition tents.
Our team is ready to get your projects now!
The name cannot be empty!
The email cannot be empty!Email format error!
The phone cannot be empty!
The message cannot be empty!

FAQs of LINGTONG Multi-side Tent

  • What sizes are available for the Multi-Side Tent?

    Our Multi-Side Tents come in a variety of sizes, ranging from small (10x10 feet) to large (up to 100x100 feet). Custom sizes are also available based on your event needs.

  • Is the tent waterproof?

    Yes, the fabric used in our Multi-Side Tent is waterproof, ensuring your event is protected from rain.

  • How long does it take to set up the tent?

    Setup time can vary depending on the size of the tent, but generally, a 20x20 foot tent can be set up in approximately 1-2 hours by a team of 3-4 people.

  • Can I buy the tent from LINGTONG Structure?

    Yes, we only offer purchase options for our tents.

  • What if I need a custom design or color?

    We can customize the tent design, color, and logo printing to match your specific needs. Contact our team for more information.
