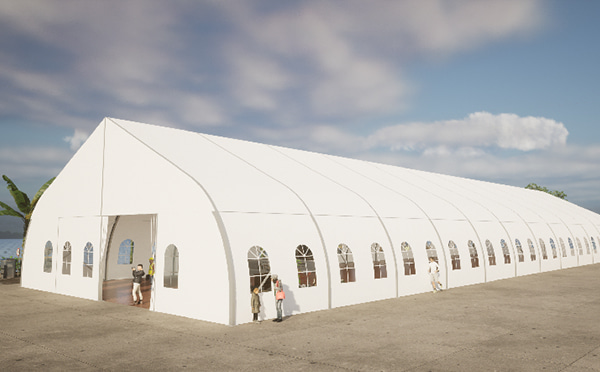

TFS Tent
TFS Tent Structure is a versatile architectural solution. The peach shape provides a distinctive and elegant appearance while maximizing interior space and load distribution.
Materials: High-strength aluminum alloy frames, PVC fabric.
Uses: Event spaces (exhibition halls, outdoor venues)
Sports facilities (stadiums, arenas)
Commercial buildings (malls, pavilions)
Temporary shelters (disaster relief, military)

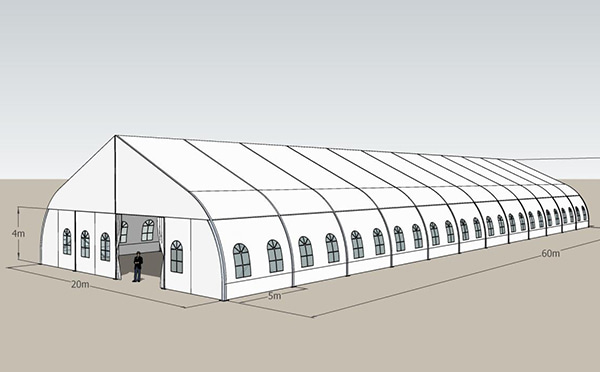

Span Width：15-30m
| Model | Span (m) | Bay Distance (m) | Eave Height (m) | Top Height (m) | Roof Pitch | Main Profile (mm) | Spec Download |
| LTTX-15/400K | 15 | 5 | 4 | 7.6 | 25° | 203×112×4.5mm | |
| LTTX-20/400K | 20 | 5 | 4 | 8.7 | 25° | 203×112×4.5mm | |
| LTTX-25/400K | 25 | 5 | 4 | 9.9 | 25° | 203×112×4.5mm | |
| LTTX-15/500K | 15 | 5 | 5 | 8.6 | 25° | 203×112×4.5mm | |
| LTTX-20/500K | 20 | 5 | 5 | 9.7 | 25° | 203×112×4.5mm | |
| LTTX-25/500K | 25 | 5 | 5 | 10.9 | 25° | 203×112×4.5mm | |
| LTTX-20/500L | 20 | 5 | 5 | 9.7 | 25° | 256×121×4.5mm | |
| LTTX-25/500L | 25 | 5 | 5 | 10.9 | 25° | 256×121×4.5mm | |
| LTTX-30/500L | 30 | 5 | 5 | 12 | 25° | 256×121×4.5mm | |
| LTTX-20/600L | 20 | 5 | 6 | 10.7 | 25° | 256×121×4.5mm | |
| LTTX-25/600L | 25 | 5 | 6 | 11.9 | 25° | 256×121×4.5mm | |
| LTTX-30/600L | 30 | 5 | 6 | 13 | 25° | 256×121×4.5mm |
| Materials | Aluminum Alloy Frame |
| Q235 Steel Components / Stainless Steel Components | |
| Finish Treatment | Silver Positive Anodized Surface |
| Powder Coated and Painting | |
| Hot dip Galvanization for steel parts | |
| Color Options | Silver / Black/ White |
| Installation Way | Expansion bolts / Ground Stakes / Weight Plates |
| Max Wind Load | Up to 120km/h |
| Max Snow Load | Up to 0.5kn/sqm |
| Materials | High-Strength PVC Coated Fabric |
| Thickness Options | 650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent) |
| Color Options | White / Black / Grey / Customized option (to meet MOQ) |
| Light Transmittance | Opaque / Semi-Transparent / Full Transparent |
| Waterproof | Yes |
| UV Coated | Yes |
| Fire Retardent | Yes (DNI4102: B1, M2) |
| Sidewall | Soft PVC Fabric (thickness take cover materials for reference) |
| Sandwich Panel Wall | |
| ABS Panel Wall | |
| Tempered Glass Panel Wall | |
| Door | Fabric Door: Curtain-Open PVC Door, Zipper or String closure |
| Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door | |
| Sliding Door: Glass Sliding Door, Sandwich Sliding Door | |
| Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door | |
| Lining & Drapes | Lining and Drapes with various colors, with customzied waves against the request of structure. |
| Color: White as standard. | |
| Windows | Transparent PVC windows for PVC wall |
| Glass Awning Window / Glass Sliding Window for solid walls | |
| Flooring system | Simple wooden flooring system |
| Heavy Steel frame Modular fllooring system | |
| Heavy Alum. Modular Flooring System | |
| Secure Protection | Anti-collision Post with warning texture |
| Anti-collision Barriers with warning texture | |
| Others | Truss frames and stage system for events |
Get Your Custom TFS Tent Quote Today!
Our experts are here to help discover the perfect solution for you.
Request a Free Quote
Our team is ready to get your projects now!
FAQs of LINGTONG TFS Tent
Is a tent a tensile structure?
A tent can be a tensile structure, especially modern designs like the TFS Tent (Tension Fabric Structure tent), which utilizes tensioned fabric membranes and frameworks (e.g., PVC-coated materials) to create lightweight, durable shelters. These structures rely on tension for stability. Traditional tents differ but share basic tensile principles.
What is tension fabric?
Tension fabric refers to durable, high-grade materials (e.g., PVC-coated polyester) stretched over frameworks to form stable structures. A prime example is the TFS Tent (Tension Fabric Structure tent), featuring an engineered aluminum frame and hydraulically tensioned panels for all-weather resilience, quick assembly, and modular adaptability.
What is a tensile fabric structure?
A tensile fabric structure is a lightweight, durable shelter system that uses tensioned fabric membranes (e.g., PVC-coated polyester) stretched over a framework. A prime example is the TFS Tent (Tension Fabric Structure tent), featuring an engineered aluminum frame and hydraulically tensioned panels for wind resistance, quick assembly, and adaptability in temporary or permanent applications like events or industrial shelters.
What type of structure is a tent?
A tent is a tensile structure that relies on tensioned fabric membranes and frameworks for stability. For example, the TFS Tent (Tension Fabric Structure tent) combines lightweight aluminum frames with hydraulically tensioned PVC-coated fabric for durability and wind resistance. Tents may also use frame-supported designs (e.g., pole or steel frameworks), but tensile structures prioritize material flexibility and tension-based engineering.
How long do sprung structures last?
Sprung structures, like the TFS Tent (Tension Fabric Structure tent), typically last 15–30+ years, depending on material quality (e.g., PVC-coated fabric), maintenance, and environmental conditions. Engineered for durability, they withstand extreme weather and can be disassembled or relocated without compromising structural integrity. Regular inspections and fabric replacements extend lifespan.
