Capacity: Ideal for 20 to 200 guests
Features:
● Clearspan design with no internal poles for maximum usable space

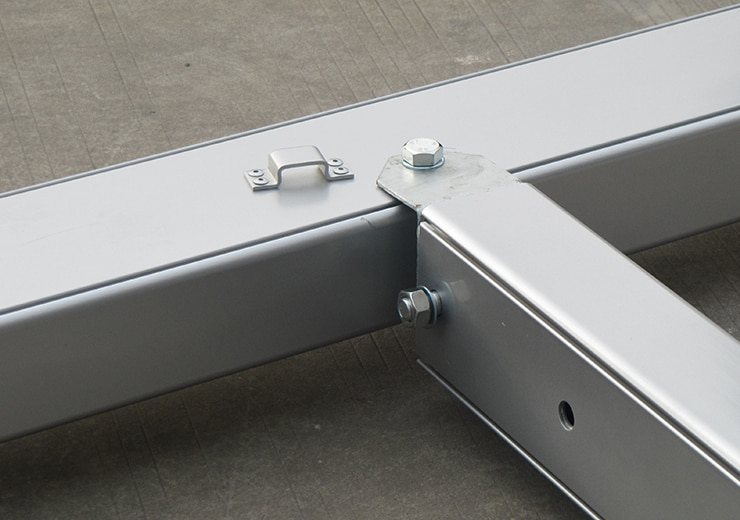

● High-quality aluminum frame for durability
● Fully weather-resistant with customizable sidewalls and flooring options
Best For: Private events, small weddings, workshops, exhibitions, and pop-up markets.
Certificated with CE, ISO9001
Available with fabric walls, doors, flooring and other accessories
Ready To Work With Us?
Our team is ready to get your projects now!
Model | Span (m) | Bay Distance (m) | Eave Height(m) | Top Height (m) | Roof Slope | Main Profile (mm) |
LTRX-10/400KA | 10 | 5 | 4 | 5.6 | 18° | 203x112x4mm |
LTRX-12/400KA | 12 | 5 | 4 | 5.9 | 18° | 203x112x4mm |
LTRX-10/400J | 10 | 5 | 4 | 5.9 | 18° | 108x150x3mm |
LTRX-12/400J | 12 | 5 | 4 | 6.3 | 18° | 108x150x3mm |
LTRX-10/500K | 10 | 5 | 5 | 6.6 | 18° | 203x112x4.5mm |
LTRX-12/500K | 12 | 5 | 5 | 6.9 | 18° | 203x112x4.5mm |
LTRX-3/250G | 3 | 3 | 2.5 | 3 | 20° | 48x84x3mm |
LTRX-6/250G | 6 | 3 | 2.5 | 3.6 | 20° | 48x84x3mm |
LTRX-8/250G | 8 | 3 | 2.5 | 3.9 | 20° | 48x84x3mm |
LTRX-10/250G | 8 | 3 | 2.5 | 4.3 | 20° | 48x84x3mm |
LTRX-3/300H | 3 | 3 | 3 | 3.5 | 20° | 48x100x3mm |
LTRX-6/300H | 6 | 3 | 3 | 4.1 | 20° | 48x100x3mm |
LTRX-8/300H | 8 | 3 | 3 | 4.4 | 20° | 48x100x3mm |
LTRX-10/300H | 10 | 3 | 3 | 4.8 | 20° | 48x100x3mm |
LTRX-8/300I | 8 | 3 | 3 | 4.3 | 18° | 68x122x3mm |
LTRX-10/300I | 10 | 3 | 3 | 4.6 | 18° | 68x122x3mm |
LTRX-12/300I | 12 | 3 | 3 | 4.9 | 18° | 68x122x3mm |
LTRX-8/400I | 8 | 3 | 3 | 5.3 | 18° | 68x122x3mm |
LTRX-10/400I | 10 | 3 | 3 | 5.6 | 18° | 68x122x3mm |
LTRX-12/400I | 12 | 3 | 3 | 5.9 | 18° | 68x122x3mm |
LTHX-10/400J | 10 | 5 | 4 | 5.5 | 20° | 108x150x3mm |
LTHX-12/400J | 12 | 5 | 4 | 5.9 | 20° | 108x150x3mm |
LTHX-10/500K | 10 | 5 | 5 | 5.5 | 20° | 203x112x4.5mm |
LTHX-12/500K | 12 | 5 | 5 | 5.9 | 20° | 203x112x4.5mm |
LTDF-10/400M | 10 | 5 | 6.8 | 8.4 | 18° | 300x120x5.5mm |
| Materials | Aluminum Alloy Frame |
| Q235 Steel Components / Stainless Steel Components | |
| Finish Treatment | Silver Positive Anodized Surface |
| Powder Coated and Paiting | |
| Hot dip Galvanization for steel parts | |
| Color Options | Silver / Black/ White |
| Installation Way | Expansion bolts / Ground Stakes / Weight Plates |
| Max Wind Load | Up to 120km/h |
| Max Snow Load | Up to 0.5kn/sqm |
| Materials | High-Strength PVC Coated Fabric |
| Thickness Options | 650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent) |
| Color Options | White / Black / Grey / Customized option (to meet MOQ) |
| Light Transmittance | Opaque / Semi-Transparent / Full Transparent |
| Waterproof | Yes |
| UV Coated | Yes |
| Fire Retardent | Yes (DNI4102: B1, M2) |
| Sidewall | Soft PVC Fabric (thickness take cover materials for reference) |
| Sandwich Panel Wall | |
| ABS Panel Wall | |
| Tempered Glass Panel Wall | |
| Door | Fabric Door: Curtain-Open PVC Door, Zipper or String closure |
| Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door | |
| Sliding Door: Glass Sliding Door, Sandwich Sliding Door | |
| Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door | |
| Lining & Drapes | Lining and Drapes with various colors, with customzied waves against the request of structure. |
| Color: White as standard. | |
| Windows | Transparent PVC windows for PVC wall |
| Glass Awning Window / Glass Sliding Window for solid walls | |
| Flooring system | Simple wooden flooring system |
| Heavy Steel frame Modular fllooring system | |
| Heavy Alum. Modular Flooring System | |
| Secure Protection | Anti-collision Post with warning texture |
| Anti-collision Barriers with warning texture | |
| Others | Truss frames and stage system for events |
