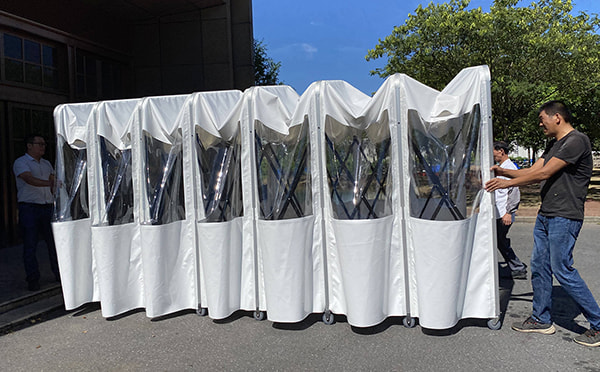

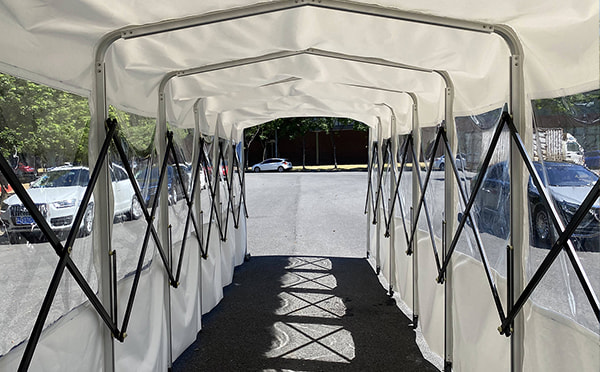

Retractable Tunnel Tent
The Retractable Tunnel Tent, with its durable aluminum frame and weatherproof PVC cover, provides a versatile storage or event space that's easy to extend, retract, and anchor on various terrains.
Size Options: From small 4m x 4m to large 10m x 10m, catering to various event scales.
Material: High-strength aluminum alloy frame with PVC waterproof membrane, offering good light transmission and wind resistance.
Load Capacity: Max. 6 tons, suitable for heavy exhibits or decorations.
Application: Suitable for various terrains, especially outdoor environments like grass, sand, and urban plazas.
| Model | Span (m) | Bay Distance (m) | Eave Height(m) | Top Height (m) | Roof Slope | Main Profile (mm) | Spec Download |
| LTTL-2/200S | 2m | 1m | 2m | 2.3 | 10° | 40x40x2mm | |
| LTTL-3/200S | 3m | 1m | 2m | 2.4 | 10° | 40x40x2mm | |
| LTTL-4/200S | 4m | 1m | 2m | 2.5 | 10° | 40x40x2mm | |
| LTTL-5/200S | 5m | 1m | 2.5 | 2.6 | 10° | 46X70*2mm | |
| LTTL-6/200S | 6m | 1m | 2.5 | 2.7 | 10° | 46X70*2mm | |
| LTTL-8/200S | 8m | 1m | 2.5 | 2.9 | 10° | 46X70*2mm | |
| LTTL-10/200S | 10m | 1m | 2.5 | 3.1 | 10° | 46X70*2mm |
| Materials | Aluminum Alloy Frame |
| Q235 Steel Components / Stainless Steel Components | |
| Finish Treatment | Silver Positive Anodized Surface |
| Powder Coated and Painting | |
| Hot dip Galvanization for steel parts | |
| Color Options | Silver / Black/ White |
| Installation Way | Expansion bolts / Ground Stakes / Weight Plates |
| Materials | High-Strength PVC Coated Fabric |
| Thickness Options | 650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent) |
| Color Options | White / Black / Grey / Customized option (to meet MOQ) |
| Light Transmittance | Opaque / Semi-Transparent / Full Transparent |
| Waterproof | Yes |
| UV Coated | Yes |
| Fire Retardent | Yes (DNI4102: B1, M2) |
| Sidewall | Soft PVC Fabric (thickness take cover materials for reference) |
| Sandwich Panel Wall | |
| ABS Panel Wall | |
| Tempered Glass Panel Wall | |
| Door | Fabric Door: Curtain-Open PVC Door, Zipper or String closure |
| Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door | |
| Sliding Door: Glass Sliding Door, Sandwich Sliding Door | |
| Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door | |
| Lining & Drapes | Lining and Drapes with various colors, with customzied waves against the request of structure. |
| Color: White as standard. | |
| Windows | Transparent PVC windows for PVC wall |
| Glass Awning Window / Glass Sliding Window for solid walls | |
| Flooring system | Simple wooden flooring system |
| Heavy Steel frame Modular fllooring system | |
| Heavy Alum. Modular Flooring System | |
| Secure Protection | Anti-collision Post with warning texture |
| Anti-collision Barriers with warning texture | |
| Others | Truss frames and stage system for events |
Get Your Custom Retractable Tunnel Tent Quote Today!
Our experts are here to help discover the perfect solution for you.
Request a Free Quote
Our team is ready to get your projects now!
FAQs of LINGTONG Retractable Tunnel Tent
What is a retractable tunnel?
A retractable tunnel is a portable, semi-permanent structure designed to provide safe and efficient entry and exit for players between the locker room and the playing field. It can be extended when in use and retracted when not needed, maximizing available space.
Are the tunnels easy to move?
Yes, each tunnel is equipped with pneumatic wheels as standard, allowing for easy movement and positioning without the need for heavy lifting equipment.
Can the tunnels withstand different weather conditions?
Absolutely. Our tunnels are constructed using high-quality, weather-resistant materials, ensuring they can withstand diverse weather conditions and provide consistent performance over time.
Can retractable tunnels be used for purposes other than sports?
Yes, our tunnels are not limited to sports applications. They are also ideal for various industrial uses, such as spray paint booths, quarantine areas, additional storage spaces, and loading/unloading bays.
Are the tunnels cost-effective?
Retractable tunnels offer a cost-effective solution compared to permanent structures. They are typically less expensive and can be easily transported to different venues as needed, making them an ideal choice for facilities that host a variety of events.
