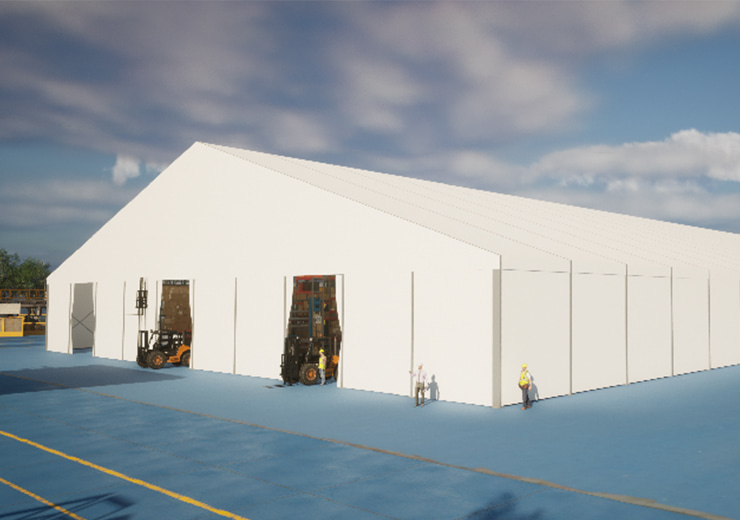

Capacity: Ideal for 500 to 2,000+ guests
Features:
● Exceptionally large clearspan design for maximum interior space
● Advanced engineering and support structures for large-scale events and industrial warehouses
● Customizable options for high-quality flooring, lighting, and sidewalls
Best For: Concerts, large corporate events, festivals, outdoor sporting events, trade shows.
Certificated with CE, ISO9001
Available with fabric walls, doors, flooring and other accessories
Ready To Work With Us?
Our team is ready to get your projects now!

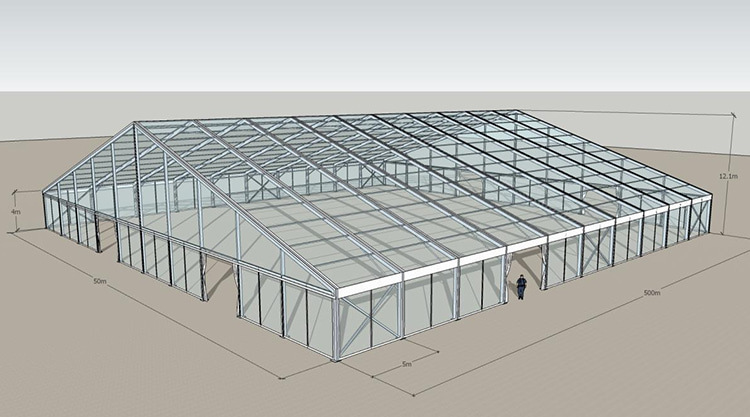

Model | Span (m) | Bay Distance (m) | Eave Height(m) | Top Height (m) | Roof Slope | Main Profile (mm) |
LTRX-30/400L | 30 | 5 | 4 | 8.9 | 18° | 256x121x4.5mm |
LTRX-30/500L | 30 | 5 | 5 | 9.9 | 18° | 256x121x4.5mm |
LTRX-30/600L | 30 | 5 | 6 | 10.9 | 18° | 256x121x4.5mm |
LTRX-30/600M | 30 | 5 | 6 | 11 | 18° | 300x120x5.5mm |
LTRX-40/600M | 40 | 5 | 6 | 12.6 | 18° | 300x120x5.5mm |
LTRX-30/720M | 30 | 5 | 7.2 | 12.3 | 18° | 300x120x5.5mm |
LTRX-40/720M | 40 | 5 | 7.2 | 14 | 18° | 300x120x5.5mm |
LTRX-30/600MA | 30 | 5 | 6 | 11 | 18° | 350x120x5mm |
LTRX-40/600MA | 40 | 5 | 6 | 12.6 | 18° | 350x120x5mm |
LTRX-50/600MA | 50 | 5 | 6 | 14.2 | 18° | 350x120x5mm |
LTRX-30/720MA | 30 | 5 | 7.2 | 12.3 | 18° | 350x120x5mm |
LTRX-40/720MA | 40 | 5 | 7.2 | 14 | 18° | 350x120x5mm |
LTRX-40/600U | 40 | 5 | 6 | 12.8 | 18° | 350x120x6/11mm |
LTRX-50/600U | 50 | 5 | 6 | 14.2 | 18° | 350x120x6/11mm |
LTGX-30/500L | 30 | 5 | 5 | 13.2 | 40° | 256x121x4.5mm |
LTGX-30/600M | 30 | 5 | 6 | 14.2 | 40° | 300x120x5.5mm |
LTGX-40/600M | 40 | 5 | 6 | 16.9 | 40° | 300x120x5.5mm |
LTTX-30/500L | 30 | 5 | 5 | 12 | 25° | 256x121x4.5mm |
LTTX-30/600L | 30 | 5 | 6 | 13 | 25° | 256x121x4.5mm |
LTRX-30/500L | 30 | 5 | 5 | 9.9 | 20° | 256x121x4.5mm |
LTRX-30/600L | 30 | 5 | 6 | 10.9 | 20° | 256x121x4.5mm |
LTHX-30/600M | 30 | 5 | 6 | 10.6 | 20° | 300x120x5.5mm |
LTHX-40/600M | 40 | 5 | 6 | 12.6 | 20° | 300x120x5.5mm |
| Materials | Aluminum Alloy Frame |
| Q235 Steel Components / Stainless Steel Components | |
| Finish Treatment | Silver Positive Anodized Surface |
| Powder Coated and Paiting | |
| Hot dip Galvanization for steel parts | |
| Color Options | Silver / Black/ White |
| Installation Way | Expansion bolts / Ground Stakes / Weight Plates |
| Max Wind Load | Up to 120km/h |
| Max Snow Load | Up to 0.5kn/sqm |
| Materials | High-Strength PVC Coated Fabric |
| Thickness Options | 650GSM / 750GSM / 850GSM / 950GSM / 1000GSM (transparent) |
| Color Options | White / Black / Grey / Customized option (to meet MOQ) |
| Light Transmittance | Opaque / Semi-Transparent / Full Transparent |
| Waterproof | Yes |
| UV Coated | Yes |
| Fire Retardent | Yes (DNI4102: B1, M2) |
| Sidewall | Soft PVC Fabric (thickness take cover materials for reference) |
| Sandwich Panel Wall | |
| ABS Panel Wall | |
| Tempered Glass Panel Wall | |
| Door | Fabric Door: Curtain-Open PVC Door, Zipper or String closure |
| Tempered Glass Door: Single-wing Glass door/ Double-wing Glass door | |
| Sliding Door: Glass Sliding Door, Sandwich Sliding Door | |
| Rolling Door: PVC Rolling Door / Alum. Rolling door / Steel Rolling Door | |
| Lining & Drapes | Lining and Drapes with various colors, with customzied waves against the request of structure. |
| Color: White as standard. | |
| Windows | Transparent PVC windows for PVC wall |
| Glass Awning Window / Glass Sliding Window for solid walls | |
| Flooring system | Simple wooden flooring system |
| Heavy Steel frame Modular fllooring system | |
| Heavy Alum. Modular Flooring System | |
| Secure Protection | Anti-collision Post with warning texture |
| Anti-collision Barriers with warning texture | |
| Others | Truss frames and stage system for events |
