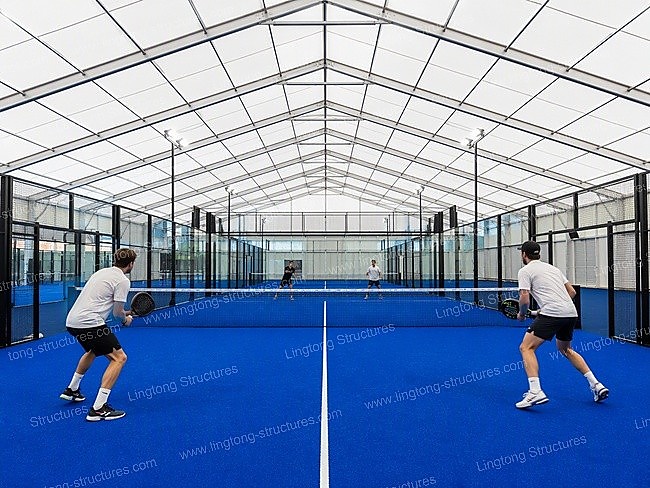

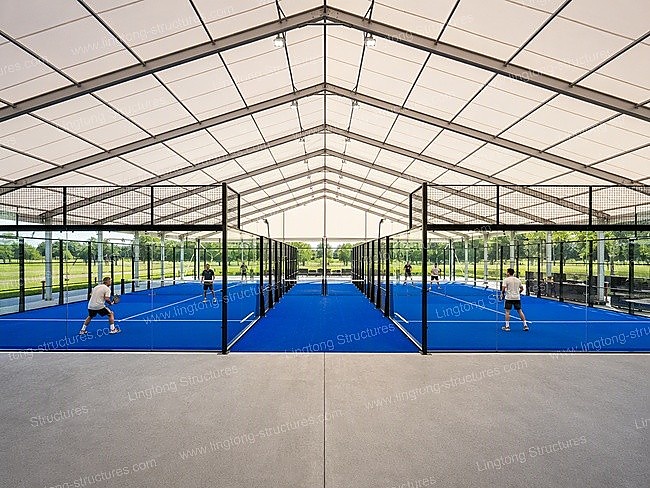

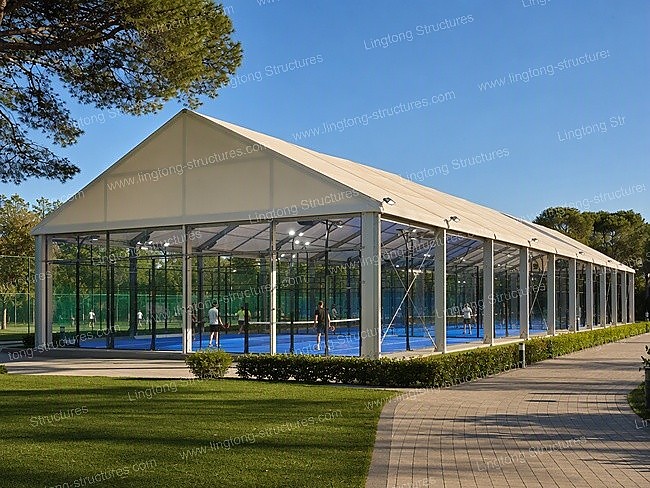

Designed to cover four standard padel courts in a 2x2 layout, this 20x40 padel court tent uses a clear-span aluminium frame and double-sided PVC cover. With a 20-meter span and 40-meter length, it fits standard court dimensions together with sufficient buffer zones for glass fencing and player movement. The aluminium frame is anodized for corrosion resistance, and the PVC cover is waterproof, flame-retardant and UV-resistant.

For padel clubs and resorts, this tent offers a fast way to add covered courts without civil construction. It can be installed on concrete, asphalt or compacted ground. The interior is column-free, so all four courts remain fully usable with no obstruction. This structure also supports multiple side-wall options such as transparent PVC or glass curtain walls, providing natural light and spectator viewing.

When weather changes or the season ends, this tent can be dismantled and relocated. The frame and cover are designed for repeated assembly. This makes it suitable for clubs that need temporary or seasonal courts, as well as for permanent installations where building permits are difficult.

20x40 Padel Court Tent Features

Four padel courts in a 2x2 layout can be covered

20m span and 40m length with no internal columns

Anodized aluminium frame resists rust and keeps weight low

Double-sided PVC cover is waterproof, flame-retardant (B1) and UV-resistant

Installs on concrete, asphalt or compacted ground without a foundation

Modular frame allows expansion and relocation

Transparent PVC or glass side walls are optional

Suitable for year-round use in most climates

Colors, printing and court layout can be customized

20x40 Padel Court Tent Specifications

20x40 Padel Court Tent Applications

Padel Clubs: Add four covered courts without building a permanent hall.

Resorts and Hotels: Offer guests all-weather padel facilities.

Schools and Universities: Provide safe, covered courts for PE classes and training.

Community Sports Centers: Install quickly on existing outdoor courts.

Event Venues: Set up temporary padel courts for tournaments and exhibitions.

Customization

This 20x40 padel court tent can be customized with different eave heights, side wall materials, colors and printed graphics. The court layout can adopt a 2x2 configuration or other alternative arrangements. Send us your site plan and court requirements, and we will provide CAD drawings and configuration proposals.

Brand Introduction

Lingtong Tent has been manufacturing aluminium tents for 29 years, with a 20,000㎡ factory in Changzhou, Jiangsu. We provide CAD drawings, 3D renderings and installation guidance. Aluminium extrusion, surface anodizing and fabric welding are all done in-house. Products are exported to many countries and regions worldwide, with ISO9001 and CE certifications. In the sports court sector, we have supplied padel, tennis and pickleball court tents for clubs and resorts.

FAQ

Q: How many padel courts can fit in a 20x40 padel court tent?
A: Four standard courts in a 2x2 layout. Each court is 20m x 10m, with buffer zones included.

Q: Does it require a concrete foundation?
A: No. It can be installed on concrete, asphalt or compacted ground. Ground anchors or ballast weights are used for fixing.

Q: Can the side walls be transparent?
A: Yes. Transparent PVC, glass curtain walls or netting are available. Transparent walls provide natural light and spectator visibility.

Q: How long does installation take?
A: For a standard configuration, on-site installation typically takes 3–7 working days, depending on site conditions and configuration.

Q: Is the tent suitable for windy areas?
A: The aluminium frame is designed for level 7–8 wind resistance after fixing (approx. 50–75 km/h). For high-wind locations, a reinforced version is available.
