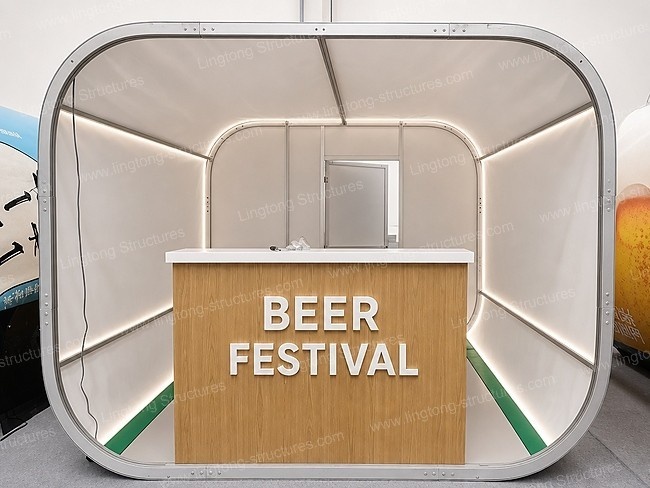

Capsule Tent For Event is an inflatable capsule tent designed for event booths. Connect the inflation pump on site, and small sizes inflate in 10-15 minutes while large sizes take about 20 minutes. Dual inflation ports are faster. Once inflated, lighting, counter and shelving are ready along with the tent body. This Capsule Tent For Event combines an aluminum outer frame with an inflatable tent body. The frame provides shape and support, while the body holds its shape through internal sealed pressure. The interior is column-free, with counters and shelving along the walls and a customer aisle in the middle. Lift the cover panel to open for business. After the event, deflate, fold, pack and move to the next event. When a different event needs a new visual, only the cover is replaced while the frame continues in use. Capsule Tent For Event is suitable for touring events and repeated use across multiple occasions.
Aluminum frame packs into standard parts, cover deflates and folds, multiple units fit in one truck, reducing transport cost for touring events
After inflation, the body holds shape through internal sealed pressure, no generator needed to run the blower continuously

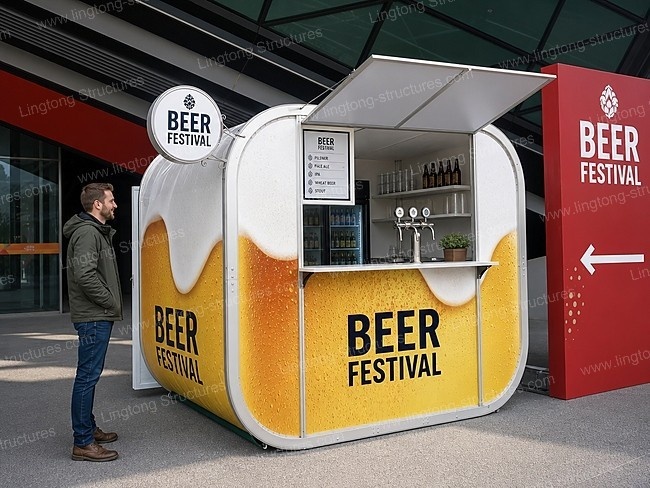

Service opening uses a telescopic rod push-up structure, lift the cover panel to open for business
Aluminum frame and cover support repeated assembly, no need to repurchase for multiple events per year

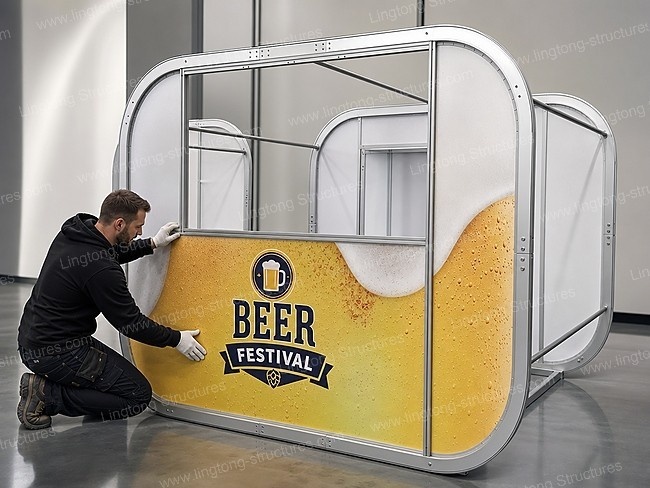

Cover can be replaced for different events while the frame continues in use
Cover color and printed graphics can be customized to match the event theme
Spare parts available at cost for the whole service life
| Item | Specification |
|---|---|
| Shape | Capsule, rounded ends |
| Length | 2.5m / 4m |
| Eave Height | 2.5m |
| Profile Size | 48x84x3mm |
| Working Pressure | Lower limit 0.1MPa / Upper limit 0.4MPa / Overpressure 0.6MPa |
| Inflation Time | Single port: 10-15 minutes for small size, about 20 minutes for large size; dual ports faster |
| Frame Material | Aluminum 6005-T5 / 6061-T6, anodized / powder coated / painted |
| Cover Material | 650 / 750g/m² flame-retardant double-sided PVC knife-coated fabric |
| Cover Performance | Waterproof, flame-retardant (B1), UV-resistant, temperature range -30℃ to +70℃ |
| Pre-installed | Lighting, counter, shelving |
| Estimated Interior Area | About 5-6 m² for 2.5m length, about 8-9 m² for 4m length |
| Colors | White, black, red, transparent, other colors customizable |
| Printing | UV printing / screen printing / outdoor photo printing |
| Wind Resistance After Fixing | Level 7-8 |
| Fixing Accessories | Wind-resistant steel cables, ground stakes, expansion bolts |
| Frame Service Life | 15-20 years (under normal use and maintenance, varies by environment) |
| Cover Service Life | 5-8 years (varies by frequency of use and environment) |
| MOQ | 1 set |
| Delivery Time | 15-30 days after design confirmation |
Pressure note: Lower pressure limit — the device automatically starts inflating when pressure drops below this level. Upper pressure limit — inflation stops once this value is reached. Overpressure threshold — the device slowly releases air when pressure exceeds this level, usually when rising temperatures cause internal pressure to increase. The inflation pump is not included as standard and is available as an option.
Market events: night markets, cultural markets, weekend fairs, food festivals. Stall operation or brand display, the capsule shape stands out among dense booths.
Beer festival booths: beer sales and temporary operation areas. Counters and shelving along the walls with a customer aisle in the middle, for fast setup and quick operation.
Brand pop-ups: shopping mall atriums, pedestrian streets, park entrances. Short-term testing of foot traffic and spending power, dismantled after the event.
Music festivals and outdoor events: sales kiosks, reception, interactive experience areas.
Site dimensions, booth orientation and key visuals vary by event. Capsule Tent For Event is customized to actual event needs: cover color matched to the event theme or brand visual; cover printed with key visuals or brand graphics, replaceable for different events while the frame continues in use. Send us the event site plan before ordering and we will provide layout suggestions.
Lingtong Tent has been manufacturing aluminum tents for 29 years, with a 20,000㎡ factory in Changzhou, Jiangsu. We provide CAD drawings, 3D renderings and installation guidance as part of the design deliverables. Aluminum extrusion, surface anodizing and fabric welding are all done in-house, without third parties. Products are exported to over 200 countries with ISO9001 and CE certifications. In the event tent sector, we have completed projects for markets, beer festivals, music festivals and brand pop-ups.
Q: How long does assembly and disassembly take after an event?
A: Deflation takes about 15-30 minutes. Frame disassembly and cover folding take about 1-2 hours. All parts pack into transport cases, no special tools required.
Q: How does the service opening work?
A: Lift the cover panel upward to open for business, lower it to close.
Q: Does it require continuous blower power supply?
A: No. It relies on internal sealed pressure to hold shape. Minor pressure loss over time is normal, and occasional top-up inflation is sufficient.
Q: What if a different event needs new theme graphics?
A: Only the cover needs to be replaced while the aluminum frame continues in use. Cover color and graphics can be customized to the event theme and are ready to use after inflation.
Q: What if the ground is uneven during inflation?
A: Grass, concrete and asphalt are all suitable. For soft ground, lay boards or add ballast bases to ensure even force on the tent body during inflation.
