Aircraft Hangar A-Frame Tent for Abu Dhabi
Project Background and Challenges
Extreme Climate Conditions — Summer temperatures in Abu Dhabi frequently exceed 45°C. Traditional tents lack sufficient insulation, making internal temperature control difficult to maintain.
Premium Brand Requirements — International brands demand exceptional venue aesthetics. Conventional tents with visible columns and basic fabric walls fail to meet the quality standards required for premium events. The client needed a temporary space that could withstand extreme climate conditions while delivering a premium visual experience. The A-Frame Tent, with its stable triangular structure and superior wind resistance, was the ideal choice for this project.
LINGTONG A-Frame Tent Solution
40m Clear-Span Space — High-strength aluminum A-Frame construction with zero internal columns, delivering 100% usable space and flexible layout options.

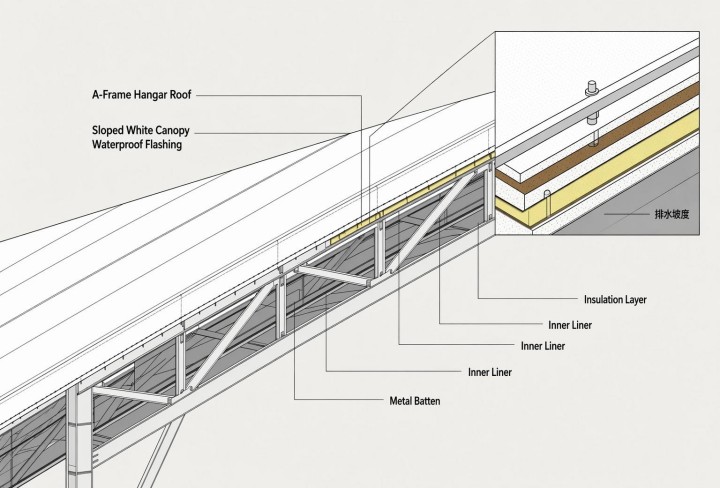

All-Weather Climate Control — Double-layer insulated PVC roof fabric combined with HVLS fans and central air conditioning maintains a comfortable 22-25°C indoor environment. The A-Frame structure has passed wind tunnel testing, capable of withstanding winds up to 120 km/h.
Modular Rapid Deployment — Factory pre-fabricated components with on-site assembly. Zero ground damage, efficient delivery and installation.
Core Technical Specifications
| Product Series | A-Frame Tent |
| Frame Material | Aviation-Grade Aluminum |
| Clear Span | 40 m |
| Total Area | 5,000 ㎡ |
| Wind Load | Up to 120 km/h |
| Snow Load | Up to 1.5 kN/㎡ |
Project Delivery Results
Successful Delivery and Operation — The 5,000㎡ A-Frame Tent has been successfully delivered and is now in operation. The entire project — from design and manufacturing to on-site installation — was executed efficiently. The finished tent has met all performance expectations in terms of structural stability, thermal insulation, and visual presentation, fully satisfying the client's requirements for a premium event space in extreme climate conditions.
Project Execution and Service
Custom Design — Precise calculations for insulation, cooling, and fabric specification based on Abu Dhabi's local climate data.
Quality Control — ISO 9001 production standards with 100% inspection before shipment.
On-Site Installation — Technical engineers supervised the entire installation process, ensuring precision and safety.
After-Sales Support — Structural warranty and regular maintenance services to ensure long-term performance.
Client Feedback
"LINGTONG's A-Frame Tent strikes the perfect balance between structural stability and spatial flexibility. The 40m clear span gave us complete freedom for space planning, and the overall quality significantly elevated the event experience. Even during the hottest season, indoor temperature control remained impressive."
— Event Operations Director, Abu Dhabi National Exhibition Centre
