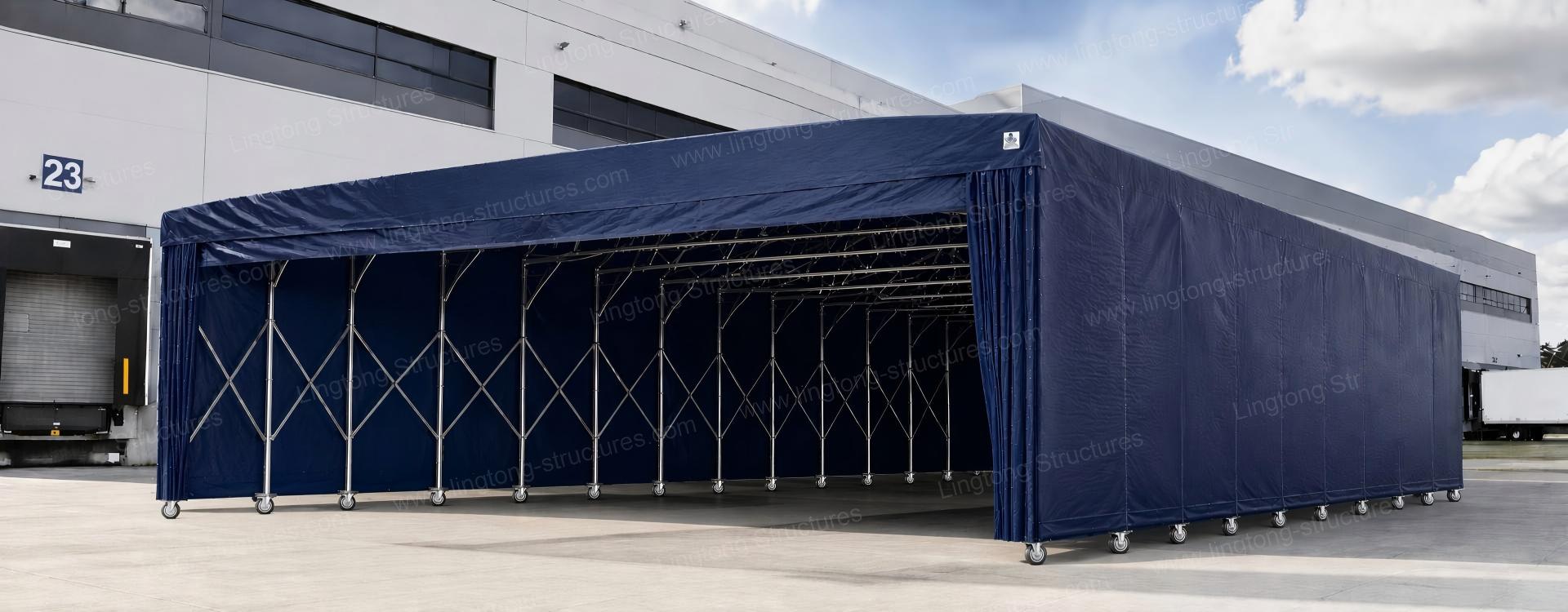

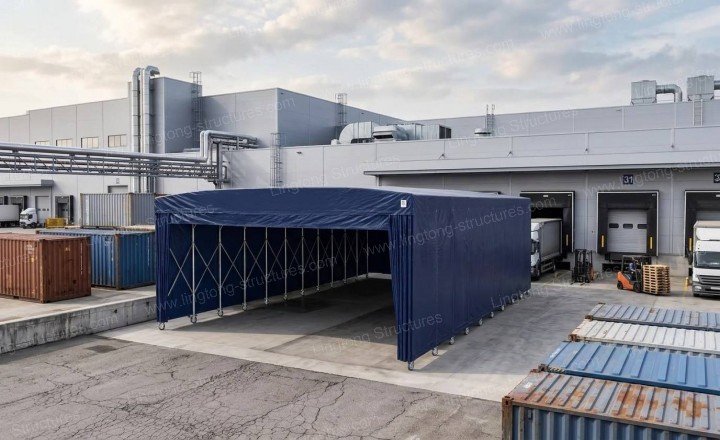

The retractable mobile storage tent solves the flexibility challenge of storage space: insufficient space when you need it, wasted space when you build a fixed shelter that sits unused. Normally kept folded against the wall, it doesn't occupy aisles or work areas. When materials need to be stored, simply pull it out for instant covered space. Once the goods are cleared, retract it and the site is restored.

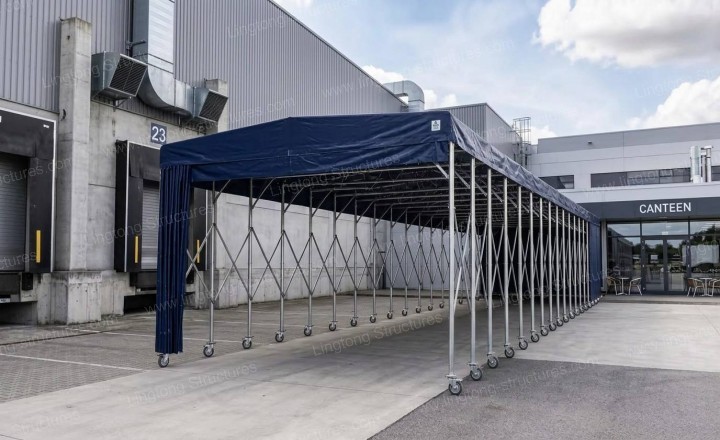

Factory Workshop Temporary Material Storage: Workshop aisles blocked by temporary material piles with no spare room for storage. Set up the tent at the workshop entrance or factory open area for temporary material storage, retract after the job is done – no workshop space taken, no production flow disruption.

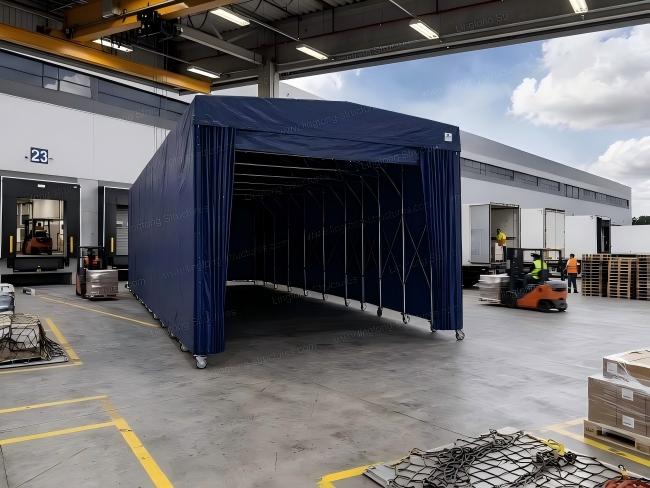

Logistics Transfer Stations: E-commerce peak seasons cause massive order surges, courier stations face overflow, unloading and sorting areas need sun and rain protection. The tent expands as a temporary sorting and transfer zone, retracted when the peak season ends – no permanent footprint.

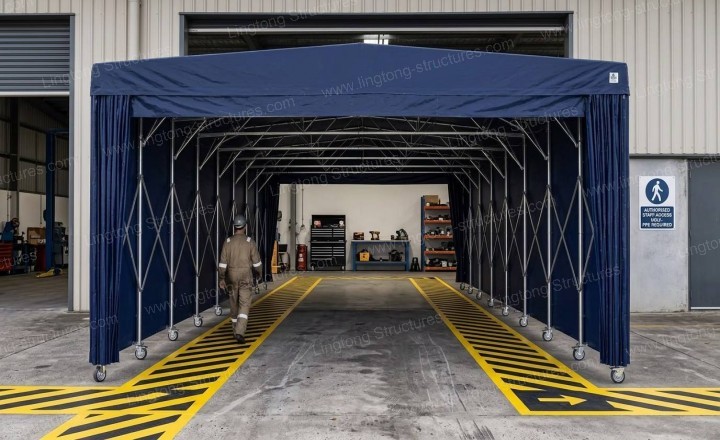

Construction Site Storage: Rebar, cement, formwork and equipment deteriorate when left exposed to rain and sun. Set up the tent on site to store materials, with supplies available as needed. When the project is complete, relocate the entire tent to the next site.
Factory Finished Goods Staging: Finished goods from production lines waiting for shipment need temporary storage. Position the tent next to the loading area for finished goods staging, direct dispatch during loading – eliminating double handling. Once dispatched, retract the tent and restore loading access.

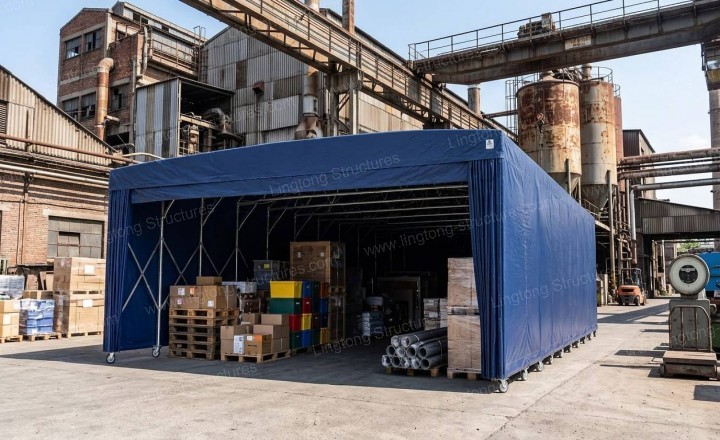

The scissor-fold mechanism works by pulling outward to expand and pushing inward to retract. Equipped with wheels or track system at the base, standard sizes can be operated manually by one person. For larger spans, an electric push-pull system is recommended for one-touch automatic extension and retraction.
The folded footprint is minimal. Expandable span from 3 to 15 meters, custom length available. For spans exceeding 12 meters, manual operation becomes challenging – electric operation is recommended. Length is customizable to requirements.
The aluminum frame is anodized for corrosion resistance, lightweight yet strong, with a service life of 15-20 years. The cover is 850g/㎡ double-sided PVC knife-coated fabric, waterproof, flame-retardant and UV-resistant, with a service life of 5-8 years depending on local climate and maintenance.
Braked swivel castors – lock in place once positioned
Electric push-pull system – one-touch extension and retraction
Side wall curtains – fully enclosed storage space
Internal lighting system – for night operation
Custom cover printing – company logo or branding
Ballast bases – enhanced stability in windy conditions
| Item | Specification |
|---|---|
| Frame Material | High-strength aluminum alloy, anodized |
| Cover Material | 850g/㎡ double-sided PVC knife-coated fabric, waterproof, flame-retardant, UV-resistant |
| Span Range | 3-15 meters (customizable, electric recommended for spans >12m) |
| Extended Length | Customizable to project requirements |
| Extension Mechanism | Scissor-fold structure, manual/electric optional |
| Frame Service Life | 15-20 years |
| Cover Service Life | 5-8 years (varies by environment and maintenance) |
Lingtong Tent has 29 years of experience in aluminum tent manufacturing, with its factory located in Changzhou, Jiangsu, covering 20,000㎡. All production processes – aluminum extrusion, surface anodizing, and PVC fabric high-frequency welding – are completed in-house. Products are exported to over 200 countries with ISO9001 and CE certifications.
Q: Can the retractable storage tent replace a fixed warehouse?
A: No. This product is designed for intermittent, temporary storage – expand when needed, retract when not. For permanent, full-time storage, a fixed aluminum tent is recommended.
Q: Can it be installed on uneven ground?
A: Uneven ground affects smooth operation. We recommend installing guide rails for leveling, or choosing the guide rail configuration. Send us site photos for evaluation and we'll provide the appropriate solution. Uncompacted soil or gravel surfaces are not recommended for wheeled versions without guide rails.
Q: How is it secured when extended?
A: Once extended, the tent is locked in place using ground anchors or ballast bases. Wheeled versions are secured by locking the castors. The folded position should also be secured to prevent unintended opening.
Q: Can it be used in windy conditions?
A: The aluminum frame is structurally sound, but this is a mobile temporary structure. In strong winds, we recommend retracting it – the folded position is the safest. For areas with high wind loads, reinforced solutions with ballast bases are available.
Q: Can the cover be replaced if damaged?
A: Yes. The cover is independently fixed to the frame. When worn or damaged, only the cover needs replacing – the frame can continue to be used.
Q: Can an electric system be added?
A: Yes. An electric push-pull system can be installed for automatic extension and retraction at the touch of a button, ideal for larger sizes or frequent use.
If you have site dimensions and specific requirements, please contact us and we will provide a customized configuration plan and quotation.
