Jiangsu Lingtong Exhibition Tent Co., Ltd.

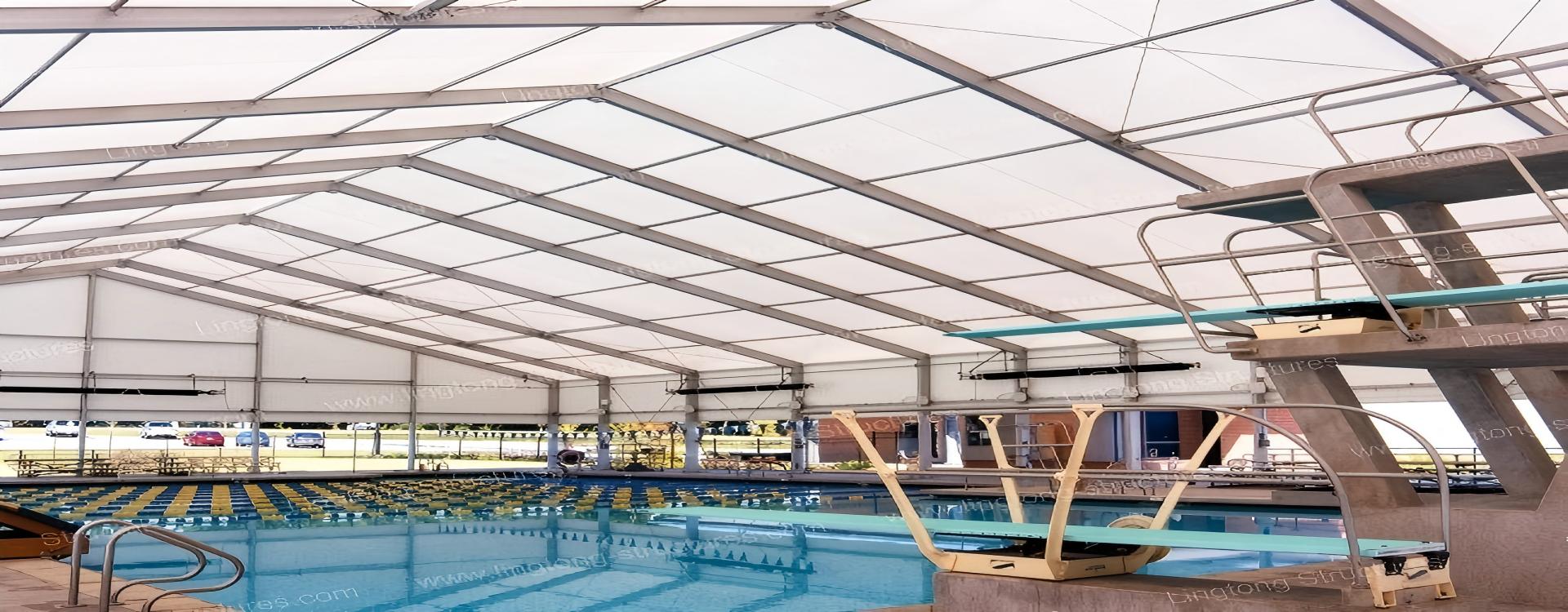

swimming pool tent is a prefabricated enclosure system designed for outdoor pools, converting them into year-round indoor swimming facilities. Unlike traditional concrete pool buildings, it requires no foundation work or ground excavation, does not damage existing surfaces, and can be installed within weeks. Investment cost is only 30%-60% of traditional pool construction, and the structure can be dismantled and relocated if needed.

Material Specifications

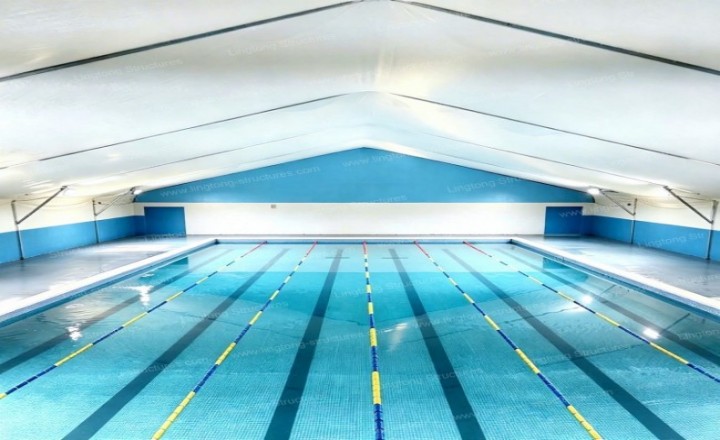

6061-T6 aluminum frame with anodized anti-corrosion treatment, suitable for humid, chlorine-rich pool environments.

Top cover: 850g/㎡ double-sided PVC coated fabric, B1 flame-retardant, UV-resistant, service life 5-8 years, replaceable separately.

Side walls: 650g/㎡ PVC coated fabric, transparent/semi-transparent/opaque options available.

Frame service life: 15-20 years.

Climate Control Systems

What sets this structure apart from standard sports tents is its insulation and dehumidification capabilities.

Insulation layer of 50-100mm (selected based on regional climate) can be added to the roof and side walls, reducing heat loss.

With the insulation system, winter water temperature can be maintained at 26-28℃.

The dehumidification system keeps indoor humidity at 50%-60%, preventing condensation drips and mold growth.

Dimensions and Applications

Span: 10-80 meters customizable (25m pool recommended 25-30m, 50m pool recommended 30-35m).

Eave height: 4-8 meters (6m+ recommended if diving boards are present).

Length: Extendable in 3m/5m modules.

Applications include hotels and resorts, community fitness centers, school swimming pools, private villas, and professional training facilities.

Technical Specifications

Optional Configurations

The insulation system can be equipped with different thicknesses based on the climate at the project location. Southern regions typically require 50mm, central regions 75mm, and northern regions 100mm. The dehumidification system can be selected from mobile units, industrial systems, or constant temperature and humidity systems. Pool water heating options include air-source heat pumps, gas boilers, or electric heating. Side wall materials can be chosen from transparent PVC, glass curtain walls, ABS hard walls, or sandwich panels. Door systems include roller doors (electric/manual), aluminum doors, and glass sliding doors. Anchoring methods include expansion bolts (for concrete), ballast weights, or ground anchors. Lighting options include LED lights or explosion-proof lights.

Brand Introduction

Lingtong Tent has 29 years of experience in aluminum tent manufacturing, with a 20,000㎡ factory in Changzhou, Jiangsu, and full in-house production covering aluminum extrusion, surface anodizing, and fabric welding. In the pool tent sector, we have provided enclosure solutions for numerous hotels, resorts, communities, and schools both domestically and internationally, with expertise in insulation and dehumidification system design for different climate conditions. We offer full-service support from site survey, CAD design, and 3D renderings to manufacturing and installation guidance. Products are exported to over 200 countries with ISO9001 and CE certifications. Spare parts are available at cost for life.

FAQ

Q: What is the typical ROI period after installing a pool tent?
A: For a standard 25m pool, the tent investment is approximately 30%-60% of traditional indoor pool construction. After installation, the pool transitions from seasonal operation (3-4 months per year) to year-round operation, typically increasing revenue by 2-3 times. Most hotel and community projects generally recover the investment within 1-2 operating years.

Q: Is planning permission or building approval required?
A: The swimming pool tent is classified as a prefabricated temporary structure, and the approval process is generally simpler than traditional concrete pool construction in most areas. However, regulations for temporary structures vary by location. We recommend checking with the local planning or construction department for specific requirements. We can provide case studies from previous projects as reference.

Q: What is the actual energy consumption of the climate control systems?
A: With 50-100mm insulation, winter pool water heating energy consumption is reduced by over 30% compared to uninsulated tents. The dehumidification system is sized based on the pool surface area. A 25m pool typically requires 2-4 industrial dehumidifiers, consuming approximately 30-60 kWh per day. Total energy consumption is approximately 50%-60% of a traditional indoor pool facility.

Q: Can the tent be expanded or relocated later?
A: Yes. The modular bolted connection design allows for length expansion by adding modules later. If relocation is needed, the tent can be dismantled and rebuilt at a new site with minimal material loss.

Q: Can it adapt to existing irregularly shaped pools?
A: Yes. Span, length, and eave height are customized to the actual pool dimensions. Curved or irregularly shaped pools can be assessed through on-site surveys to determine the optimal covering solution. Free CAD design is provided, and production begins only after design approval.
